Littelfuse KLDR020.TXP

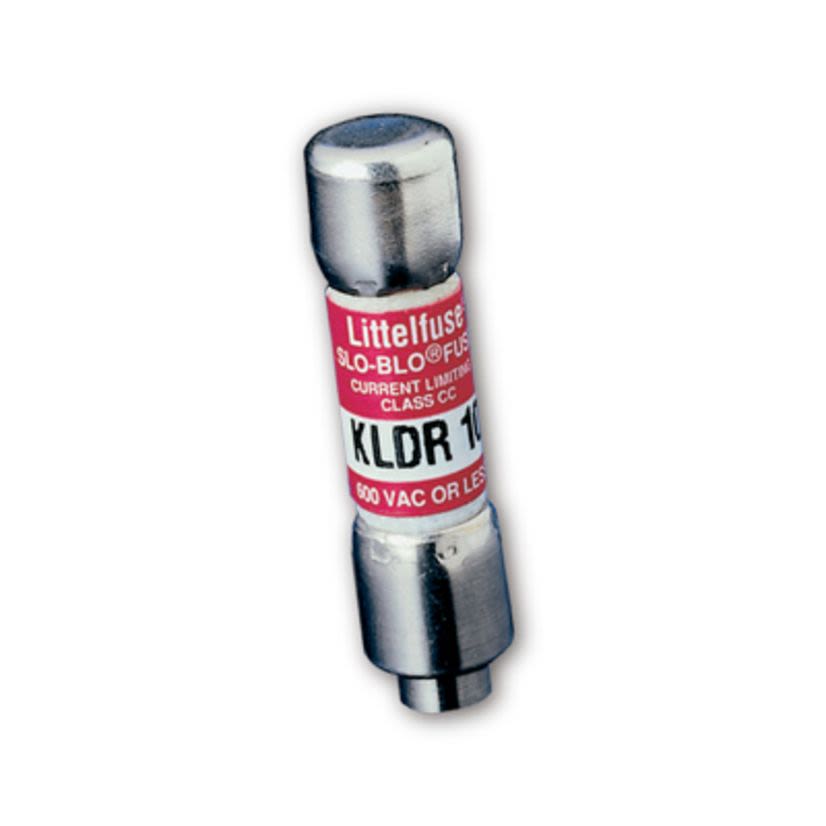

Littelfuse POWR-GARD KLDR020.TXP Current Limiting Time Delay Fuse, 20 A, 600 V AC/300 V DC, 20/200 kA Interrupt, CC Class, Cartridge Body
Littelfuse KLDR020.TXP
Littelfuse POWR-GARD KLDR020.TXP Current Limiting Time Delay Fuse, 20 A, 600 V AC/300 V DC, 20/200 kA Interrupt, CC Class, Cartridge BodyIn Stock: 43more info
|
In Stock: 43more info
|
Product Description
Littelfuse POWR-GARD Time Delay Fuse, Current Limiting, Series: KLDR, Non-Indicating, Rejection, 20 A, 600 V AC/300 V DC, 20/200 kA Interrupt, Class: CC, 12 s Response, Ferrule Terminal, Holder Mounting, Cartridge Body, Melamine, 13/32 in Dia x 1-1/2 in L Body
Attributes
Documents
Applications
Features
Attributes
Body Size13/32 in Dia x 1-1/2 in L
Body TypeCartridge
ClassCC
Country of OriginMX
Indicating/Non-IndicatingNon-Indicating
Interrupt Rating20/200 kA
ManufacturerLittelfuse
MaterialMelamine
Mounting TypeHolder
Rejection/Non-RejectionRejection
Response Time12 s
SeriesKLDR
Terminal TypeFerrule
Type / StyleCurrent Limiting
Voltage Rating600 V AC/300 V DC
Documents
Applications
For transformer protection applications
Features
- Rejection feature prevents use of fuses with lower interrupting ratings or voltage ratings when used with corresponding fuse holders
- Extremely current limiting reduces damage caused by heating and magnetic effects of short circuit currents
- 200 kA at 600 VAC, 20 kA at 300 VDC interrupt rating
- Nickel plated bronze cap
- 12 sec minimum and 4 min maximum at 200%, 1 hr maximum at 135%, 15 min minimum at 110%
