Leviton MDS8-AX

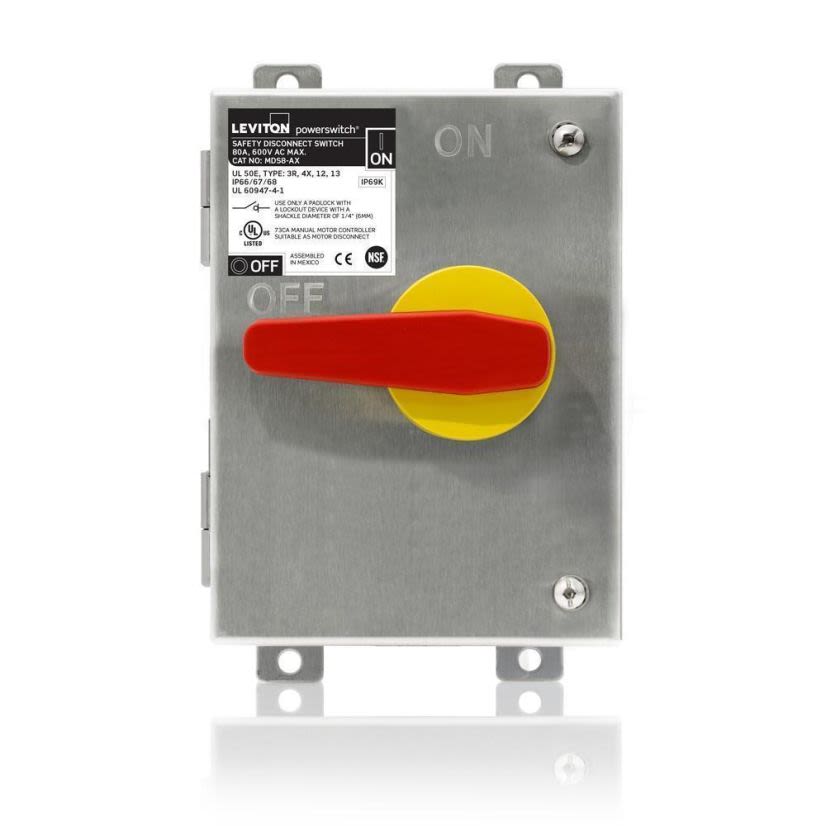

Leviton PowerswitchMDS8-AX Non-Fused Non-Magnetic Watertight Disconnect Switch, 600 V AC, 80 A, 20 hp, 40 hp
Leviton MDS8-AX
Leviton PowerswitchMDS8-AX Non-Fused Non-Magnetic Watertight Disconnect Switch, 600 V AC, 80 A, 20 hp, 40 hpOut of Stockmore info
|
BrandLeviton
MFG #MDS8-AX
Werner Part #4215333
UPC078477739822
Out of Stockmore info
|
BrandLeviton
MFG #MDS8-AX
Werner Part #4215333
UPC078477739822
Product Description
Leviton PowerswitchDisconnect Switch, Non-Fused Non-Magnetic Watertight, 600 V AC, 80 A, 20 hp, 40 hp, 1/3 Phase, 100 kA Short Circuit, Front Handle Actuator, NEMA 3R/4X/12/250/IP66/IP67/IP68/IP69K Enclosure, -40 to 75 deg C, 10.75 in H x 6.74 in W x 6.11 in D, 304 Stainless Steel
Attributes
Documents
Applications
Features
Specifications
Warranty
Attributes
Actuator TypeHandle
Country of OriginMX
Dimensions10.75 in H x 6.74 in W x 6.11 in D
Enclosure TypeNEMA 3R/4X/12/250/IP66/IP67/IP68/IP69K
Horsepower20 hp, 40 hp
ManufacturerLeviton
Material304 Stainless Steel
Mounting TypeFoot
Phase1/3
Short Circuit Current Rating100 kA
Temperature Rating-40 to 75 deg C
TypeNon-Fused Non-Magnetic Watertight
Applications
Industrial Applications
Features
- Overmold handle provides firm grip in wet environments
- Type 304 stainless steel resists corrosion, heat and abuse
- Removable door makes installation and servicing simple and quick
- 3/4 in standoff from mounting surface allows for easy cleaning
- ON/OFF marking stamped into enclosure door for clear identification
- Door features captive, triple head screws
- Soft grip handle accommodates 3-padlocks to meet OSHA 1910.147 lockout/tagout requirements
Specifications
- NSF 14159-1
- CE Certified
- cULus Listed
- UL 60947-4-1A
- IEC 60529
- NOM-ANCE Certified
Warranty
3 years Limited
