Leviton MDS3-AX

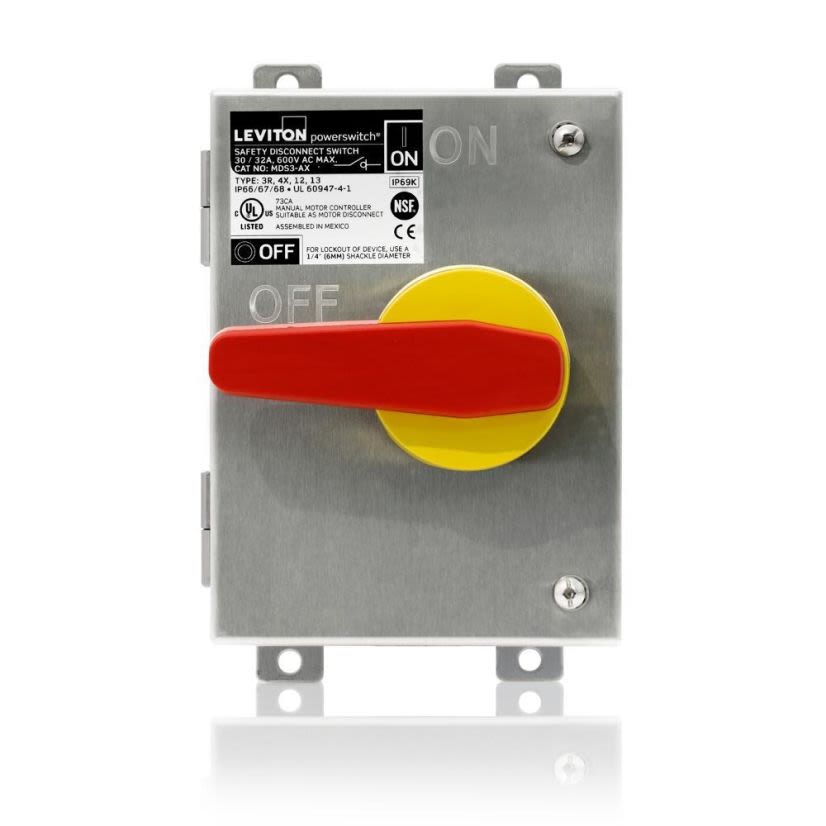

Leviton Powerswitch MDS3-AX Non-Fused Disconnect Switch With Non-Magnetic Stainless Steel Enclosure, 600 V AC, 30 A
Leviton MDS3-AX
Leviton Powerswitch MDS3-AX Non-Fused Disconnect Switch With Non-Magnetic Stainless Steel Enclosure, 600 V AC, 30 AOut of Stockmore info
|
BrandLeviton
MFG #MDS3-AX
Werner Part #4212345
UPC078477805473
Out of Stockmore info
|
BrandLeviton
MFG #MDS3-AX
Werner Part #4212345
UPC078477805473
Product Description
Leviton Powerswitch Disconnect Switch, Non-Fused, 600 V AC, 30 A, 10 kA Short Circuit, Handle Actuator, NEMA 3R/4X/12K/13/IP66/67/68/IP69K, Surface Mount, -40 to 75 deg C, 9.01 in H x 5.56 in W
Attributes
Documents
Applications
Features
Specifications
Warranty
Attributes
Actuator TypeFront Handle
Country of OriginMX
Dimensions9.01 in H x 5.56 in W
Enclosure TypeNEMA 3R/4X/12K/13/IP66/67/68/IP69K
Horsepower5 hp, 25 hp
ManufacturerLeviton
Material304 Stainless Steel
Phase1/3
Short Circuit Current Rating10 kA
Temperature Rating-40 to 75 deg C
TypeNon-Fused
Applications
Industrial Applications
Features
- Overmold handle provides firm grip in wet environments
- Type 304 stainless steel resists corrosion, heat and abuse
- Removable door makes installation and servicing simple and quick
- 3/4 in standoff from mounting surface allows for easy cleaning
- ON/OFF marking stamped into enclosure door for clear identification
- Door features captive, triple head screws
- Soft grip handle accommodates 3-padlocks to meet OSHA 1910.147 lockout/tagout requirements
Specifications
- cULus Listed
- CE Certified
- CSA C22.2 No. 60947-4-1
- UL 60947-4-1
- UL 50E
- UL 508
- NSF 14159-1
- IEC 60529
- NOM-ANCE
Warranty
3 years Limited
