Crouse-Hinds series AR642

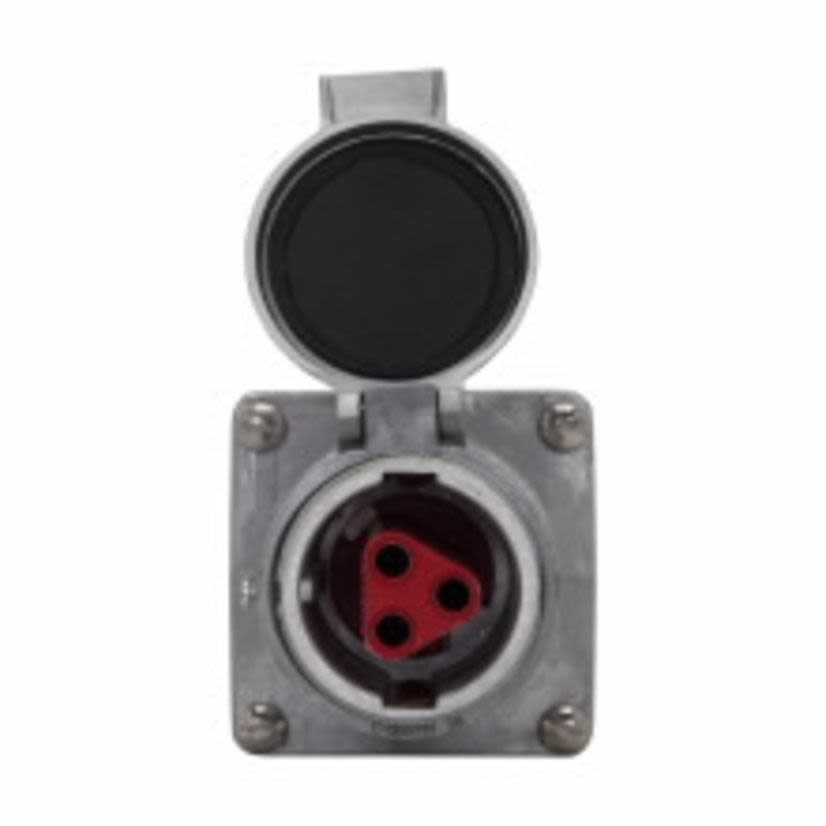

EATON AR642 Grounding Style 2 Heavy Duty Spring Door Pin and Sleeve Receptacle Housing, 600 VAC/250 VDC, 60 A, 4 Poles, 3 Wires, Cast Aluminum
Crouse-Hinds series AR642
EATON AR642 Grounding Style 2 Heavy Duty Spring Door Pin and Sleeve Receptacle Housing, 600 VAC/250 VDC, 60 A, 4 Poles, 3 Wires, Cast AluminumNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
EATON Pin and Sleeve Receptacle Housing, Grounding Style 2 Heavy Duty Spring Door, Series: AR Series, 600 VAC/250 VDC, 60 A, 4 Pole, 3 Wires, 2 Grounding Style, Cast Aluminum, Natural, 4-1/4 in L x 4-1/4 in W x 5-1/4 in H Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorNatural
Country of OriginMexico
Dimensions4-1/4 in L x 4-1/4 in W x 5-1/4 in H
ManufacturerEaton
MaterialCast Aluminum
Number of Poles4
Number of Wires3
SeriesAR Series
TypeGrounding Style 2 Heavy Duty Spring Door
Type / StyleStyle 2 Heavy Duty Spring Door
Voltage Rating600 V AC/250 V DC
Documents
Applications
Industrial Facilities, Factories Facility, Power Distribution and Control
Warranty
1 Year
Features
- Circuit breaking plugs through 100 A rating may be disconnected under load, 150 to 400 A units are for service disconnect use only
- Receptacles accept only plugs of the same amperage rating, style and number of poles, making it impossible to mismate and provides for positive polarization
- Insulator materials are the result of intensive testing, selection has been made based on highest dielectric strength, maximum mechanical and impact resistance, lowest moisture absorption and highest arc tracking resistance
- A variety of installations is possible due to the availability of several types of back boxes
- Designed to withstand rough usage and the effects of adverse environments
- Watertight
- NEMA 4 enclosure
- Reverse interior
- High impact strength copper-free aluminum
- 0.5 to 1.45 in Dia cable
- Fiberglass reinforced polyester insulation
- Shell and extra pole ground
- 6 to 4 AWG building, 8 to 4 AWG extra flex wire
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 514|UL 1010|UL 1682|CSA C22.2
