Leviton 46596-Y

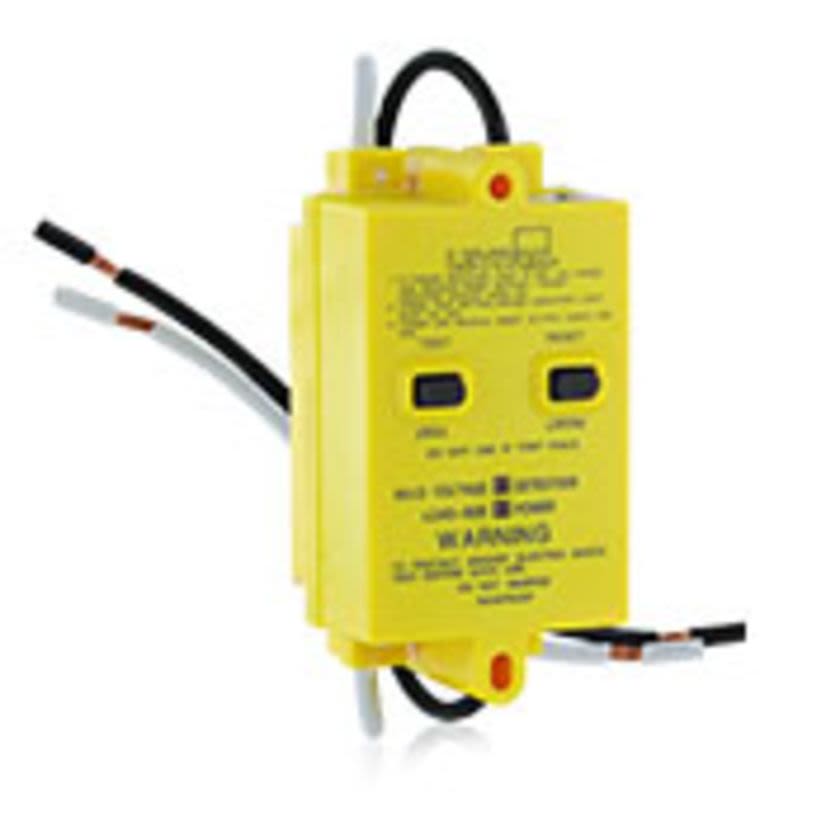

Leviton 46596-Y Automatic Reset Impact Resistant Panel Mount GFCI Module, 120 VAC, 20 A, Polycarbonate
Leviton 46596-Y
Leviton 46596-Y Automatic Reset Impact Resistant Panel Mount GFCI Module, 120 VAC, 20 A, PolycarbonateNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #46596-Y
Werner Part #4012745
UPC078477541661
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #46596-Y
Werner Part #4012745
UPC078477541661
Product Description
Leviton GFCI Module, Automatic Reset Impact Resistant Panel Mount, 120 VAC, 20 A, 60 Hz, -35 to 66 deg C, Polycarbonate, Yellow, 1.5 in L x 1.96 in W x 3.37 in H
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorYellow
Country of OriginCN
Dimensions1.5 in L x 1.96 in W x 3.37 in H
Frequency Rating60 Hz
ManufacturerLeviton
MaterialPolycarbonate
Temperature Rating-35 to 66 deg C
TypeAutomatic Reset Impact Resistant Panel Mount
Type / StyleAutomatic Reset Impact Resistant Panel Mount
Voltage Rating120 V AC
Documents
Applications
Commercial and Industrial Applications
Warranty
2 Years Limited
Features
- Provides UL 943 class A GFCI protection (5 mA +/- 1 mA)
- A high/low voltage detection red indicator lights when power supply swells or drops at approximately 160 VAC rms/7 VDC rms (+/-10%)
- Rated 20 A, 120 VAC for down stream loads, units can be easily added to equipment panels as needed
- Rugged, UV/impact resistant polycarbonate high visibility yellow housing, with moisture resistant TEST and reset buttons
- Rainproof outdoor rated GFCI module
- Automatically resets to ON after power interruption
- Open neutral protection ensures that the GFCI will trip automatically if there is a break in the neutral conductor feeding power to the GFCI
- Meets OSHA requirements for construction sites
- UV rated, impact resistant polycarbonate front and back cover
- Panel mounting
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C73|NOM 057|UL943 A/498 File No. E48380|CSA C22.2 File No. LR57811
