Leviton 16693

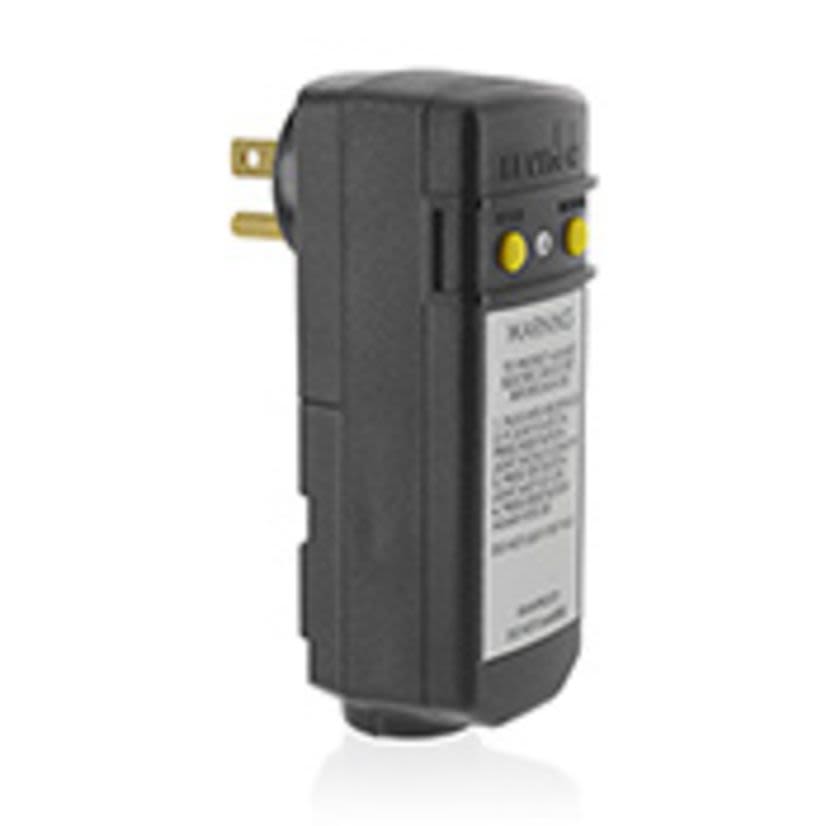

Leviton 16693 Automatic Reset Compact Grounding Right Angled GFCI Plug, 120 VAC, 15 A, 2 Poles, 3 Wires, Black
Leviton 16693
Leviton 16693 Automatic Reset Compact Grounding Right Angled GFCI Plug, 120 VAC, 15 A, 2 Poles, 3 Wires, BlackNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Leviton GFCI Plug, Automatic Reset Compact Grounding Right Angled, 120 VAC, 15 A, 0.75 hp, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-15P, 0.33 to 0.597 in Diameter Cord, -35 to 66 deg C, Blade Terminal, Polycarbonate, Black, 1.729 in L x 1.675 in W x 4.482 in H Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorBlack
Country of OriginCN
Dimensions1.729 in L x 1.675 in W x 4.482 in H
Frequency Rating60 Hz
Horsepower0.75 hp
ManufacturerLeviton
MaterialPolycarbonate
NEMA RatingNEMA 5-15P
Number of Poles2
Number of Wires3
Temperature Rating-35 to 66 deg C
Terminal TypeBlade
TypeAutomatic Reset Compact Grounding Right Angled
Type / StyleAutomatic Reset Compact Grounding Right Angled
Voltage Rating120 V AC
Documents
Applications
Commercial and Industrial Applications
Warranty
2 Years Limited
Features
- Polycarbonate, ultrasonically welded body provides long service life and excellent resistance to harsh weather
- Terminal chamber sealed with silicon and foam rubber gaskets for superior protection against moisture
- Accepts 12/3 AWG through 18/3 AWG types SJ and ST cords
- Brass contact
- 2 kA interrupt rating, 5 mA trip range
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C73|NOM 057|NEMA WD1/WD6|UL943 A/498 File No. E48380|CSA C22.2 File No. LR57811|UL94 V-2 Flammability Rating
