Blackburn 30H

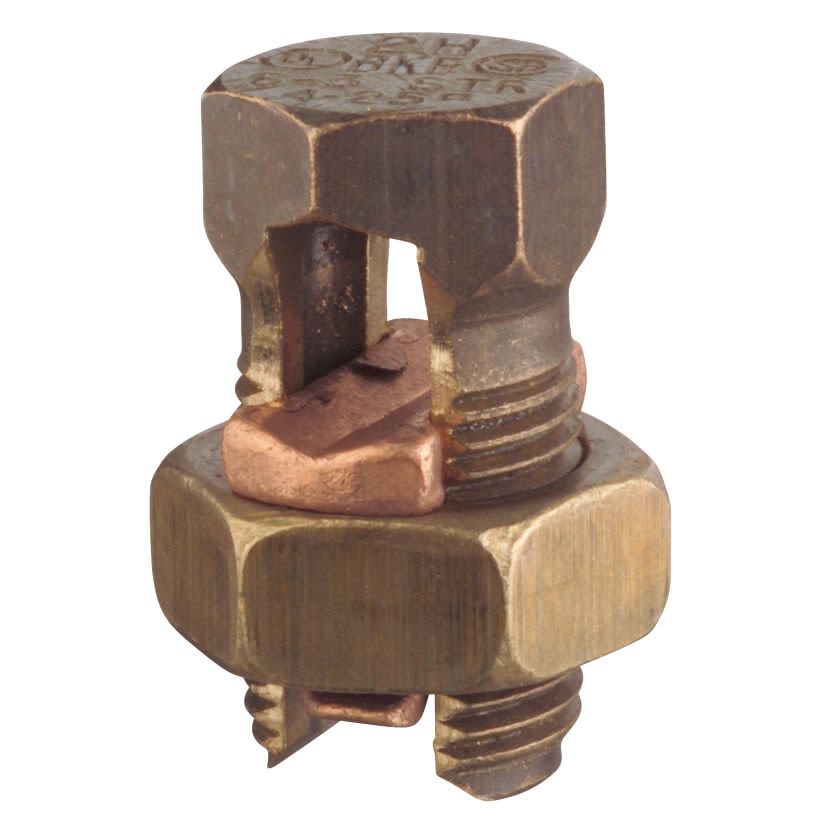

Blackburn 30H Type H High Strength Split Bolt Connector, 2 to 4/0 AWG Solid/Stranded Copper Conductor, 1 x 2-5/32 in Bolt, Bronze Alloy
Blackburn 30H
Blackburn 30H Type H High Strength Split Bolt Connector, 2 to 4/0 AWG Solid/Stranded Copper Conductor, 1 x 2-5/32 in Bolt, Bronze AlloyIn Stock: 25more info
|
BrandBlackburn
MFG #30H
Werner Part #17248
UPC783786200160
In Stock: 25more info
|
BrandBlackburn
MFG #30H
Werner Part #17248
UPC783786200160
Product Description
Blackburn 30H Split Bolt Connector, Type H High Strength, Solid/Stranded Copper Conductor, 2 to 4/0 AWG Conductor, 1 x 2-5/32 in Bolt, Specifications: 0.58 in Split, 1-5/16 in Hex Nut, Bronze Alloy, Metallic
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorMetallic
Conductor size2 to 4/0 AWG
Conductor TypeSolid/Stranded Copper
Country of OriginMX
ManufacturerABB
MaterialBronze Alloy
TypeType H High Strength
Type / StyleType H High Strength
Applications
For splicing, tapping or terminating conductors in power and grounding electrical connection
Features
- Bolt and nut of high-strength corrosion resistant bronze alloy
- Pressure bar is copper through 40H, copper alloy for 350 kcmil and above
- Bolt and nut of hex design up to 350 kcmil
- Split-bolt connector made of metallic bronze alloy for use on copper conductors
- 6 AWG solid conductor range min tap with one max main
- 4/0 AWG stranded to 2 AWG solid conductor range for equal main and tap
- 25 Pieces/Pack
Specifications
0.58 in Split, 1-5/16 in Hex Nut
