Littelfuse SPF020

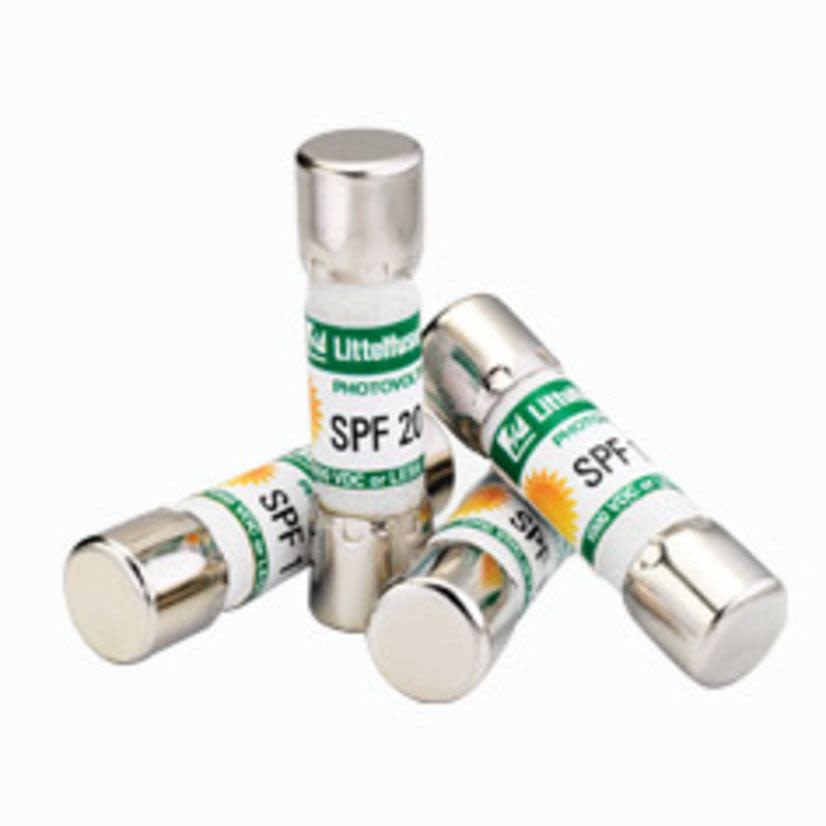

Littelfuse POWR-GARD SPF020 Fast Acting Full Range Solar Fuse, 20 A, 1 kV DC, 20 kA, Cylindrical Body
Littelfuse SPF020
Littelfuse POWR-GARD SPF020 Fast Acting Full Range Solar Fuse, 20 A, 1 kV DC, 20 kA, Cylindrical BodyNon-stock product. Available to order - lead time may vary.
BrandLittelfuse
MFG #SPF020
Werner Part #4232302
UPC079458169379
Non-stock product. Available to order - lead time may vary.
BrandLittelfuse
MFG #SPF020
Werner Part #4232302
UPC079458169379
Product Description
Littelfuse POWR-GARD Solar Fuse, Fast Acting Full Range, Series: SPF, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 20 A, 1 kV DC, 20 kA Interrupt, 12 s Response, Ferrule Terminal, PCB Mount, Cylindrical Body, Dual Element, Melamine, 13/32 in Dia x 1-1/2 in L Body Size
Attributes
Documents
Applications
Features
Attributes
Body Size13/32 in Dia x 1-1/2 in L
Body TypeCylindrical
Country of OriginMX
ElementDual
Indicating/Non-IndicatingNon-Indicating
Interrupt Rating20 kA
ManufacturerLittelfuse
MaterialMelamine
Mounting TypePCB
Rejection/Non-RejectionNon-Rejection
Response Time12 s
SeriesSPF
Terminal TypeFerrule
TypeFast Acting Full Range
Voltage Rating1 kV DC
Documents
Applications
Inverters, Combiner Boxes and Battery Charge Controllers Applications
Features
- 5AG size fuse
- 5 sec minimum delay for fuses rated at 3 A or less and 12 sec for fuses rated more than 3 A at 200% fuse rating
- Nickel plated copper alloy caps
- Time constant less than 2 ms
