Bussmann Series PV-12A10F

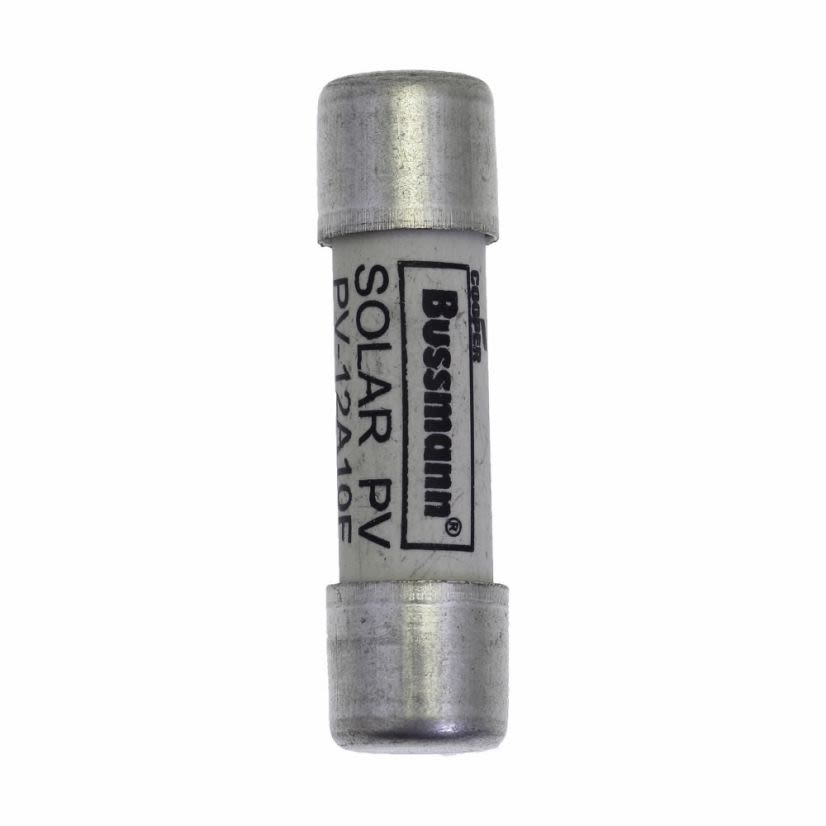

Bussmann PV-12A10F High Speed Photovoltaic Fuse, 12 A, 1 kV DC, 50 kA Interrupt, Class: gPV, Cylindrical Body
Bussmann Series PV-12A10F
Bussmann PV-12A10F High Speed Photovoltaic Fuse, 12 A, 1 kV DC, 50 kA Interrupt, Class: gPV, Cylindrical BodyNon-stock product. Available to order - lead time may vary.
BrandBussmann Series
MFG #PV-12A10F
Werner Part #3948950
UPC051712204033
Non-stock product. Available to order - lead time may vary.
BrandBussmann Series
MFG #PV-12A10F
Werner Part #3948950
UPC051712204033
Product Description
Bussmann High Speed Photovoltaic Fuse, Series: PV Series, Non-Indicating, Non-Rejection, 12 A, 1 kV DC, 50 kA Interrupt, Class: gPV, 1 to 3 ms Response, Ferrule End Terminal, Holder Mounting, Cylindrical Body, Single Element, Ceramic, 10.3 mm Dia x 38 mm L Body
Attributes
Documents
Applications
Features
Attributes
Body Size10.3 mm Dia x 38 mm L
Body TypeCylindrical
ClassgPV
Country of OriginIN
ElementSingle
Indicating/Non-IndicatingNon-Indicating
Interrupt Rating50 kA
ManufacturerEaton
MaterialCeramic
Mounting TypeHolder
Rejection/Non-RejectionNon-Rejection
Response Time1 to 3 ms
SeriesPV Series
Terminal TypeFerrule End
Voltage Rating1 kV DC
Documents
Applications
Solar Panel Combiner Boxes, Inverters, PV Wire Harnesses, Renewable Energy Generation, Alternative Energy Generation, Solar Renewable Energy Generation and Storage Systems Renewable Energy Applications
Features
- Meets UL and IEC photovoltaic standards for global acceptance
- Low wattage loss performance for energy efficiency
- Low temperature rise performance for more precise sizing
