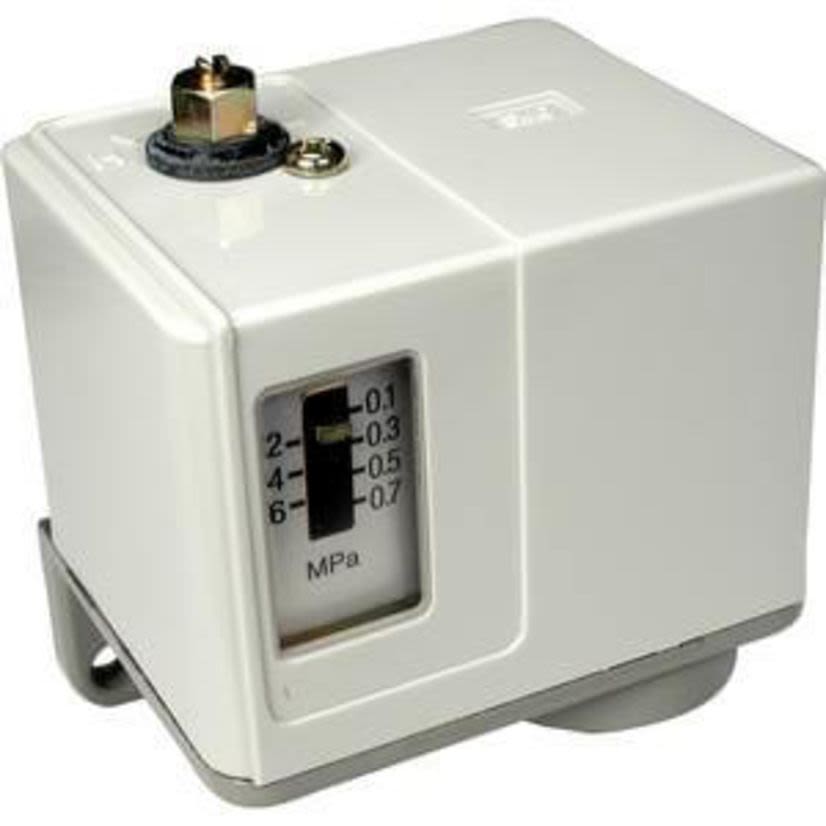

SMC IS3000-N02L5
SMC IS3000-N02L5 IS3000 Standard Switches, 1/4Rc Connection, Electrical Ratings: 160 mA at 5 V DC
SMC IS3000-N02L5
SMC IS3000-N02L5 IS3000 Standard Switches, 1/4Rc Connection, Electrical Ratings: 160 mA at 5 V DCInventory Not Available
Inventory Not Available
Product Description
SMC, IS3000-N02L5, Switches, Standard, Series: IS3000, 1/4Rc Connection, 160 mA at 5 V DC Electrical Rating, -5 to 60 deg C
Attributes
Documents
Applications
Features
Attributes
Country of OriginUS
Height70 mm
Length48 mm
ManufacturerSMC Corporation of America
SeriesIS3000
Temperature Rating-5 to 60 deg C
Type / StylePneumatic Pressure Switch
Wattage8 W
Weight150 g
Width58 mm
Documents
Applications
For applications where an electronic switch is unsuitable, or when it is desirable to trigger an electrical device when the set point is reached
Features
- Mechanical pressure switch rated to 10 million cycles
- Set pressure range 0.1 to 0.7 MPa
- Switch output is AC/DC circuit voltage for standard and micro industrial loads
- Minimum electrical load 5 VDC/160 mA (standard) or 5 VDC /1mA (micro)
- Repeatability ±0.05 MPa
- Hysteresis 0.05 MPa or less
