SMC CXSM25-50

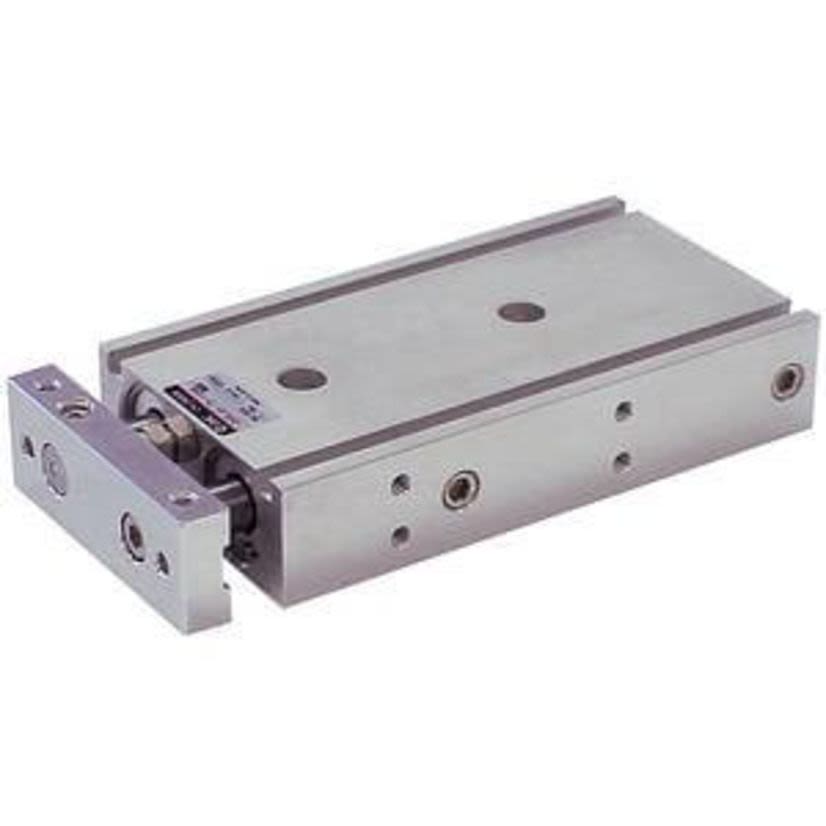

SMC CXSM25-50 CXS Slide Bearing Cylinder, 25 mm Cylinder Bore, 50 mm L Stroke, 529 N Max Force, Double Acting Cylinder Action, Through-Hole Mounting
SMC CXSM25-50 CXS Slide Bearing Cylinder, 25 mm Cylinder Bore, 50 mm L Stroke, 529 N Max Force, Double Acting Cylinder Action, Through-Hole Mounting

SMC CXSM25-50

SMC CXSM25-50 CXS Slide Bearing Cylinder, 25 mm Cylinder Bore, 50 mm L Stroke, 529 N Max Force, Double Acting Cylinder Action, Through-Hole Mounting
Inventory Not Available

BrandSMC

MFG #CXSM25-50

Werner Part #3759031

Inventory Not Available

BrandSMC

MFG #CXSM25-50

Werner Part #3759031

Product Description

SMC, CXSM25-50, Cylinder, Slide Bearing, Series: CXS, 25 mm Cylinder Bore, 50 mm Stroke Length, 529 N Maximum Force, Double Acting Cylinder Action, 1/8 BSPT Port, 0.05 to 0.7 mpa Pressure, -10 to 60 deg C, Rubber Cushion, Through-Hole Mounting, 30 mm in H x 80 mm in W x 146 mm in D Dimensions
Attributes
Country of OriginUS
Height30 mm
Length146 mm
ManufacturerSMC Corporation of America
Port Size1/8 BSPT
Pressure Rating0.05 to 0.7 mpa
SeriesCXS
Temperature Rating-10 to 60 deg C
Type / StyleCylinder, Air
Weight0.83 kg
Width80 mm
