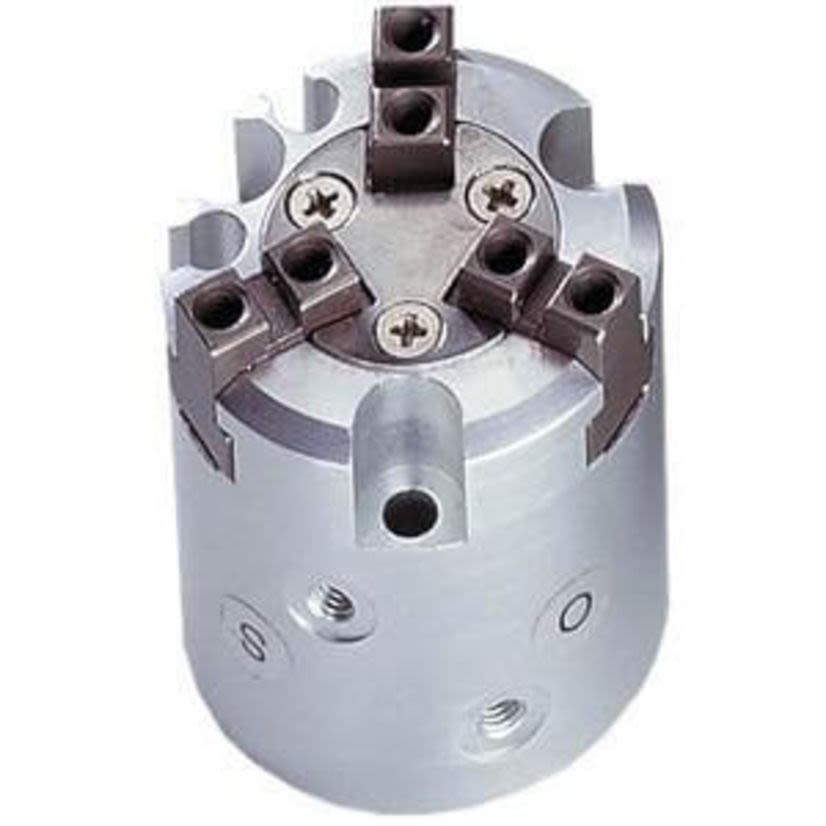

SMC MHS3-16D
SMC MHS3-16D MHS3 3-Finger Standard Air Gripper, 7 mm W Open, 5 mm W Closed, 16 N Internal Holding Force, 14 N External Holding Force
SMC MHS3-16D
SMC MHS3-16D MHS3 3-Finger Standard Air Gripper, 7 mm W Open, 5 mm W Closed, 16 N Internal Holding Force, 14 N External Holding ForceNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
SMC, MHS3-16D, Air Gripper, 3-Finger Standard, Series: MHS3, 7 mm Open Width, 5 mm Closed Width, 16 N Internal Holding Force, 14 N External Holding Force, 29 to 87 psi Pressure, 14 to 140 deg F, M3x0.5 Port, 35 mm Overall Length
Attributes
Documents
Applications
Features
Attributes
Country of OriginJP
Height30 mm
Length35 mm
ManufacturerSMC Corporation of America
Overall Length35 mm
Port SizeM3x0.5
Pressure Rating29 to 87 psi
SeriesMHS3
Temperature Rating14 to 140 deg F
Type / StyleMhs, Parallel Style Air Gripper
Weight60 g
Width30 mm
Documents
Applications
Suitable for end-of-arm (end effector) or space constrained pick and place applications
Features
- Double acting, wedge cam
- High repeatability ±0.01 mm
- Auto switch capable
- Option for NSF-H1, food grade lubricant
