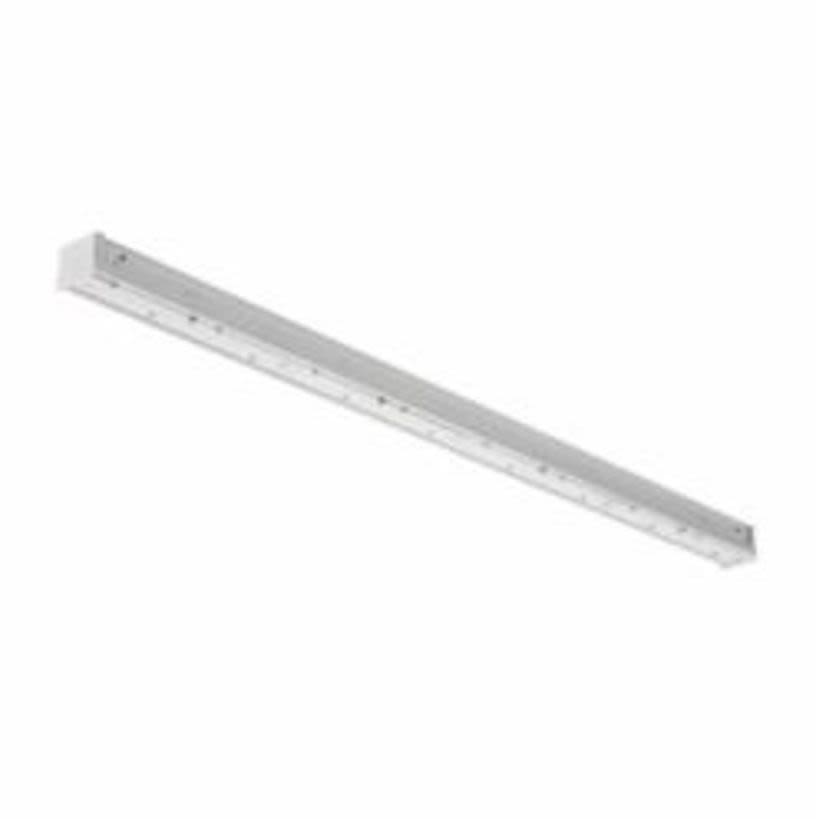

Lithonia Lighting ZL1N L48 5000LM FST MVOLT 40K 80CRI WH
Lithonia Lighting ZL1N L48 5000LM FST MVOLT 40K 80CRI WH ZL1N Series Compact Low Profile Strip Light Fixture, LED Lamp, 75 W Fixture, 110/277 V AC, White Housing
Lithonia Lighting ZL1N L48 5000LM FST MVOLT 40K 80CRI WH
Lithonia Lighting ZL1N L48 5000LM FST MVOLT 40K 80CRI WH ZL1N Series Compact Low Profile Strip Light Fixture, LED Lamp, 75 W Fixture, 110/277 V AC, White HousingNon-stock product. Available to order - lead time may vary.
BrandLithonia Lighting
MFG #ZL1N L48 5000LM FST MVOLT 40K 80CRI WH
Werner Part #4106509
UPC190887789027
Non-stock product. Available to order - lead time may vary.
BrandLithonia Lighting
MFG #ZL1N L48 5000LM FST MVOLT 40K 80CRI WH
Werner Part #4106509
UPC190887789027
Product Description
Lithonia Lighting, ZL1N L48 5000LM FST MVOLT 40K 80CRI WH, Strip Light Fixture, Compact Low Profile, Series: ZL1N Series, 110/277 V AC, 75 W Fixture, LED Lamp, 60000 hr Average Life, 4000 K Color Temperature, 80 CRI, Snap-On Frosted Diffused Lens, 5000 Lumens, Surface Mounting, Steel Housing Material, White Housing Finish, 48 in L x 3-3/8 in W x 3-1/4 in H Dimensions
Attributes
Documents
Applications
Included
Features
Attributes
Average Life60000 hr
Ballast TypeClass 2/Constant Current
Color Rendering Index (CRI)80
Color Temperature4000 K
Country of OriginMX
Dimensions48 in L x 3-3/8 in W x 3-1/4 in H
Enclosure TypeIP66
Fixture Wattage75 W
Housing FinishWhite
Housing MaterialSteel
Lamp TypeLED
Lamp Wattage26 W
Lens TypeSnap-On Frosted Diffused
Light ColorCool White
Lumen5000 Lumens
ManufacturerAcuity Brands
Mounting TypeWall
SeriesZL1N Series
TypeCompact Low Profile
Type / StyleCompact Low Profile
Voltage Rating110/277 V AC
Documents
Applications
Automotive, Parking, Education, Government, Healthcare, Hospitality, Manufacturing, Offices, Banks, Power, Gas, Religious, Residential, Retail, Sports, Recreation, Transportation and Warehouse Applications
Included
Mounting Hardware
Features
- Built on the compact, low profile Z strip channel, this LED strip offers long life, several color temperatures, lumen outputs and lengths
- Luminaire should be installed in applications where ambient temperatures do not exceed 86 deg F (30 deg C)
- Tool-less channel cover for easy installation
- Fixture may be surface mounted (with or without ZSPRG hanger), pendant or stem mounted with appropriate mounting options
- For use in damp locations between -4 to 86 deg F
- Ideal for new construction and retrofit applications in both T5 and T8 lengths
- Compact design channel and cover are formed from code gauge cold-rolled steel
- Easy to install row aligner included for continuous row mounting
- 5-stage iron phosphate pre-treatment ensures superior paint adhesion and rust resistance
- Utilizes high output LED's integrated on a two layer circuit board, ensuring cool running operation
- The ZL series LED strip lights provide aesthetic and performance choices, integrated controls options and innovative mounting accessories
- When paired with occupancy sensors, dimming and intuitive controls, you save energy and extend the life of the fixtures
- Lumen output up to 2000 lumens per foot
