Cutler-Hammer Series ECN0501AAA-R63/B

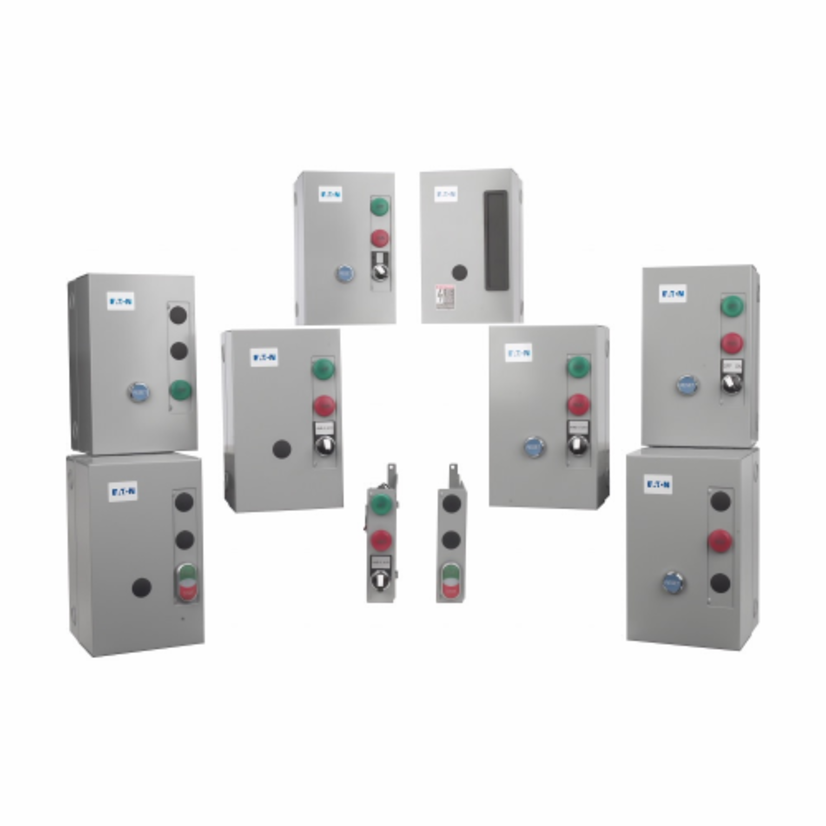

EATON ECN0501AAA-R63/B Freedom Full Voltage Non-Reversing Non-Combination NEMA Starter, 110/120 V AC V Coil, NEMA 1 Enclosure
Cutler-Hammer Series ECN0501AAA-R63/B
EATON ECN0501AAA-R63/B Freedom Full Voltage Non-Reversing Non-Combination NEMA Starter, 110/120 V AC V Coil, NEMA 1 EnclosureIn Stock: 1more info
|
In Stock: 1more info
|
Product Description
EATON NEMA Starter, Full Voltage Non-Reversing Non-Combination, Series: Freedom, 120 V AC, 50/60 Hz Frequency, 110/120 V AC Coil, Auto/Manual Reset, 1 ph, Solid-State without Ground Fault Overload Relay, 1 to 5 A Full Load, NEMA 1 Enclosure, 14.9 in L x 10.1 in W x 8.5 in H Dimensions
Attributes
Documents
Applications
Features
Specifications
Attributes
Coil Voltage110/120 V AC
Country of OriginUS
Dimensions14.9 in L x 10.1 in W x 8.5 in H
Enclosure TypeNEMA 1
Frequency Rating50/60 Hz
Full Load Current1 to 5 A
GTIN00786685450377
ManufacturerEaton
Phase1
SeriesFreedom
Type / StyleFull Voltage Non-Reversing
Applications
Motor Control Applications
Features
- Line enclosed control non-combination starter
Specifications
Standards / Approvals: ARRA Compliant|BAA Compliant|RoHS Compliant|UL File No. E1491
