Cutler-Hammer Series AN59DN0A5E020

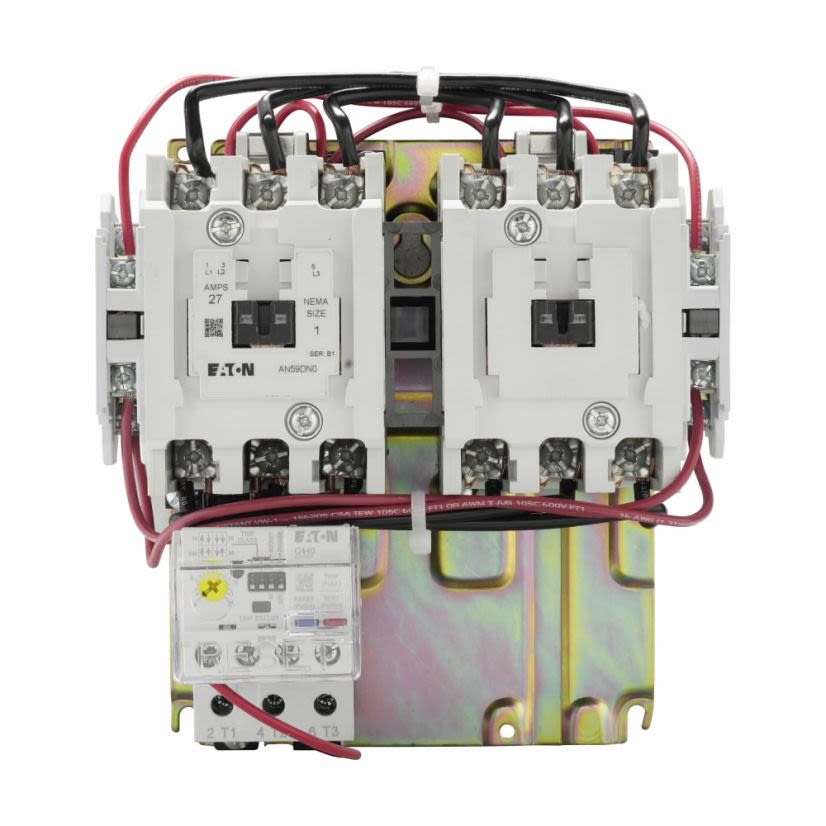

EATON AN59DN0A5E020 Type AN59 Freedom Full Voltage Magnetic Reversing NEMA Starter With C440 EOLR Standard Feature Set, SEL Reset, SEL Class (10a, 10, 20, 30), 110/120 VAC V Coil, 3 Poles, Open Enclosure
Cutler-Hammer Series AN59DN0A5E020
EATON AN59DN0A5E020 Type AN59 Freedom Full Voltage Magnetic Reversing NEMA Starter With C440 EOLR Standard Feature Set, SEL Reset, SEL Class (10a, 10, 20, 30), 110/120 VAC V Coil, 3 Poles, Open EnclosureIn Stock: 11more info
|
In Stock: 11more info
|
Product Description
EATON NEMA Starter, Full Voltage Magnetic Reversing, Series: Type AN59 Freedom, 600 V AC, 27 A, 50/60 Hz, 10 hp Motor, 110/120 VAC Coil, 3 Pole, Setting: 4 to 20 A, Automatic/Manual Reset, 1/3 ph, Line/Load Lug, C440 Standard Electronic Overload Relay, 1NO Auxiliary, Open, 4.98 x 6.7 x 7.1 in
Attributes
Documents
Applications
Features
Warranty
Attributes
Coil Voltage110/120 V AC
Connection TypeLine/Load Lug
Country of OriginDO
Dimensions4.98 x 6.7 x 7.1 in
Enclosure TypeOpen
Frequency Rating50/60 Hz
ManufacturerEaton
Number of Poles3
Phase1/3
SeriesType AN59 Freedom
Documents
Applications
Electrical Assemblies, Panels and OEMs Applications
Features
- Reliable, accurate, electronic motor protection
- Easy to select, install and maintain
- Compact size
- Flexible, intelligent design
- 2 hp at 115 VAC 1 ph, 3 hp at 230 VAC 1 ph, 7-1/2 hp at 208/240 VAC 3 ph, 10 hp at 480/600 VAC 3 ph horsepower rating
Warranty
1 year
