Cutler-Hammer Series AN59DN0A5E005

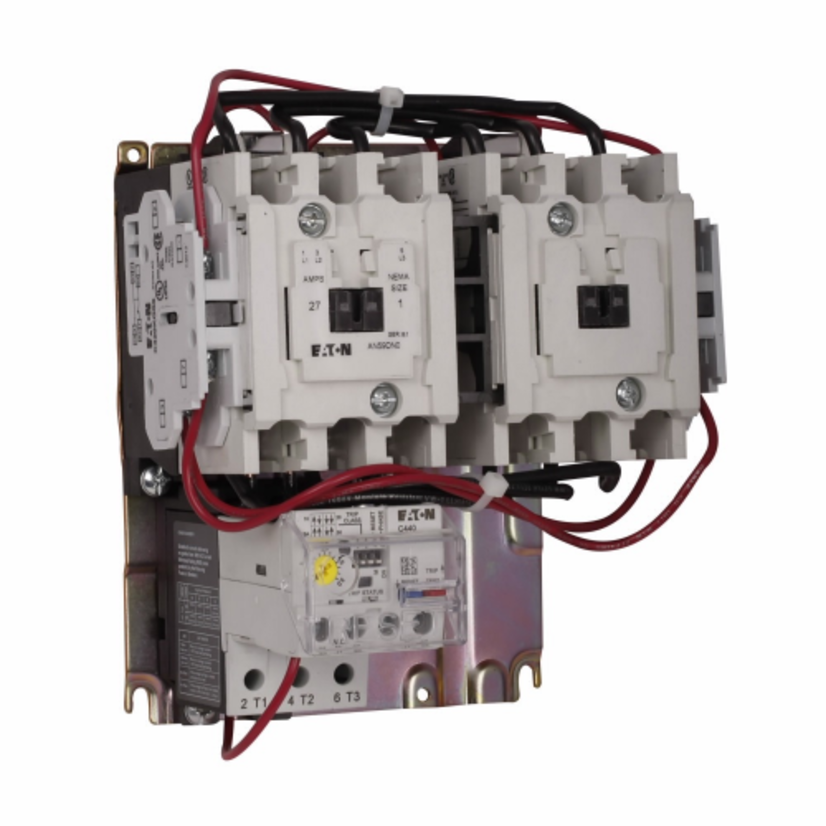

EATON AN59DN0A5E005 Freedom Type AN59 Horizontal Open NEMA Starter With C440 EOLR Standard Feature Set, SEL Reset, SEL Class (10a, 10, 20, 30), 110/120 VAC V Coil, Reversing Action, 3 Poles, NEMA 1 Enclosure
Cutler-Hammer Series AN59DN0A5E005
EATON AN59DN0A5E005 Freedom Type AN59 Horizontal Open NEMA Starter With C440 EOLR Standard Feature Set, SEL Reset, SEL Class (10a, 10, 20, 30), 110/120 VAC V Coil, Reversing Action, 3 Poles, NEMA 1 EnclosureOut of Stockmore info
|
BrandCutler-Hammer Series
MFG #AN59DN0A5E005
Werner Part #3956605
UPC786685413761
Out of Stockmore info
|
BrandCutler-Hammer Series
MFG #AN59DN0A5E005
Werner Part #3956605
UPC786685413761
Product Description
EATON NEMA Starter, Type AN59 Horizontal Open, Series: Freedom, 600 V AC, 27 A, 50/60 Hz, 10 hp Motor, 110/120 VAC Coil, 3 Pole, Line/Load, Reversing, C440 Electronic Overload Relay, 1 to 5 A Full Load, NEMA 1, 3000000 Cycles Operating Cycles, 9 x 7 x 7 in
Attributes
Documents
Applications
Warranty
Features
Attributes
ActionReversing
Coil Voltage110/120 V AC
Connection TypeLine/Load
Country of OriginDO
Dimensions9 x 7 x 7 in
Enclosure TypeNEMA 1
Frequency Rating50/60 Hz
Full Load Current1 to 5 A
ManufacturerEaton
Number of Poles3
SeriesFreedom
Type / StyleType AN59 Horizontal Open
Applications
Motor, Power Control Equipment, Electrical Assemblies and OEMs Applications
Warranty
1 year
Features
- Screw type power terminals have captive, backed out self-lifting pressure plates with +/- screws - reduced wiring time
- Accessible terminals allow for ease of use and are convenient for simple wiring
- Top located contactor magnet coils have three terminals which permit either top or diagonal wiring and are readily accessible, for easy replacement without changing wiring layout
- Standard feature set, SEL reset, SEL class (10A, 10, 20, 30) C440 EOLR
- With C440 EOLR standard feature set
