Cutler-Hammer Series AN16DN0AB

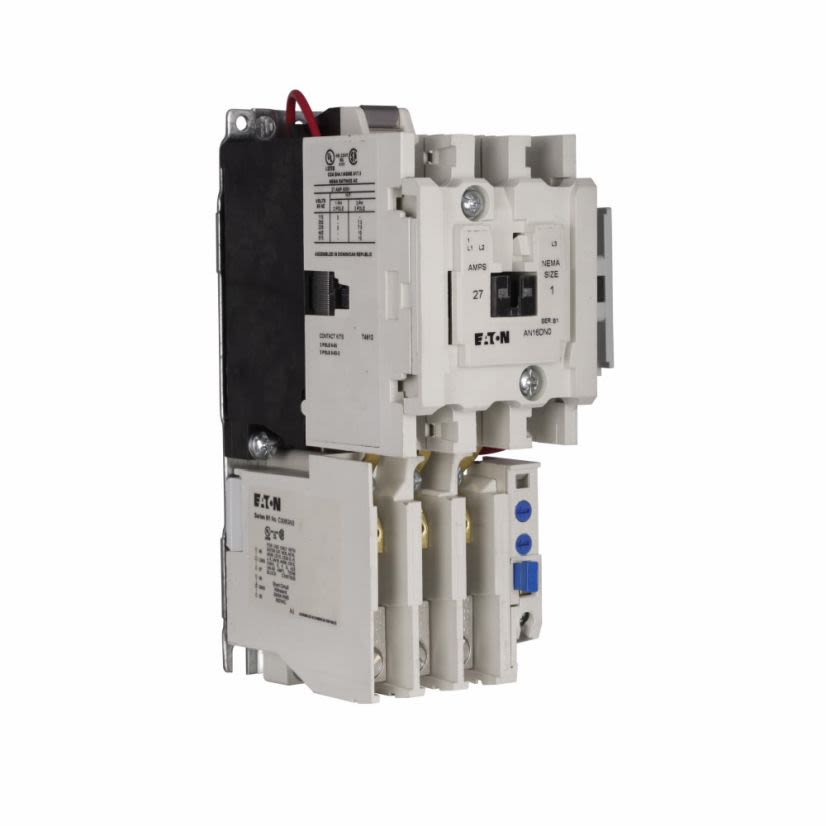

EATON AN16DN0AB Freedom Type AN16 Horizontal Open NEMA Starter, 110 to 120 VAC V Coil, Non-Reversing Action, 3 Poles, NEMA 1 Enclosure
Cutler-Hammer Series AN16DN0AB
EATON AN16DN0AB Freedom Type AN16 Horizontal Open NEMA Starter, 110 to 120 VAC V Coil, Non-Reversing Action, 3 Poles, NEMA 1 EnclosureIn Stock: 1more info
|
BrandCutler-Hammer Series
MFG #AN16DN0AB
Werner Part #24179
UPC782113971704
In Stock: 1more info
|
BrandCutler-Hammer Series
MFG #AN16DN0AB
Werner Part #24179
UPC782113971704
Product Description
EATON NEMA Starter, Type AN16 Horizontal Open, Series: Freedom, 600 V AC, 27 A, 50/60 Hz, 10 hp Motor, 110 to 120 VAC Coil, 3 Pole, Automatic/Manual Reset, Line/Load, Non-Reversing, C306 Bimetal Overload Relay, NEMA 1 Enclosure, 3000000 Cycles Operating Cycles, 4.61 x 4.38 x 3.31 in
Attributes
Documents
Applications
Features
Included
Specifications
Warranty
Attributes
ActionNon-Reversing
Coil Voltage110 to 120 V AC
Connection TypeLine/Load
Country of OriginDO
Dimensions4.61 x 4.38 x 3.31 in
Enclosure TypeNEMA 1
Frequency Rating50/60 Hz
GTIN00782113971704
ManufacturerEaton
Number of Poles3
Phase1/3
SeriesFreedom
Type / StyleType AN16 Horizontal Open
Documents
Applications
Motor, Power Control Equipment, Stationary Machinery and Equipment Outside Factory
Features
- Screw type power terminals have captive, backed out self-lifting pressure plates with +/- screws - reduced wiring time
- Accessible terminals allow for ease of use and are convenient for simple wiring
- Top located contactor magnet coils have three terminals which permit either top or diagonal wiring and are readily accessible, for easy replacement without changing wiring layout
- 2 hp at 115 VAC, 3 hp at 230 VAC, 7-1/2 hp at 208,240 VAC, 10 hp at 480 VAC horsepower rating
Included
1/2-13 x 1-1/2 in L Set Screw
Specifications
Standards / Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL File No. E1491|CSA File No. LR353|Class 3211-04|NEC Compliant|CEC Compliant|IEC Certified|CSA Certified|VDE Approved
Warranty
1 year
