Cutler-Hammer Series XTPR025BC1

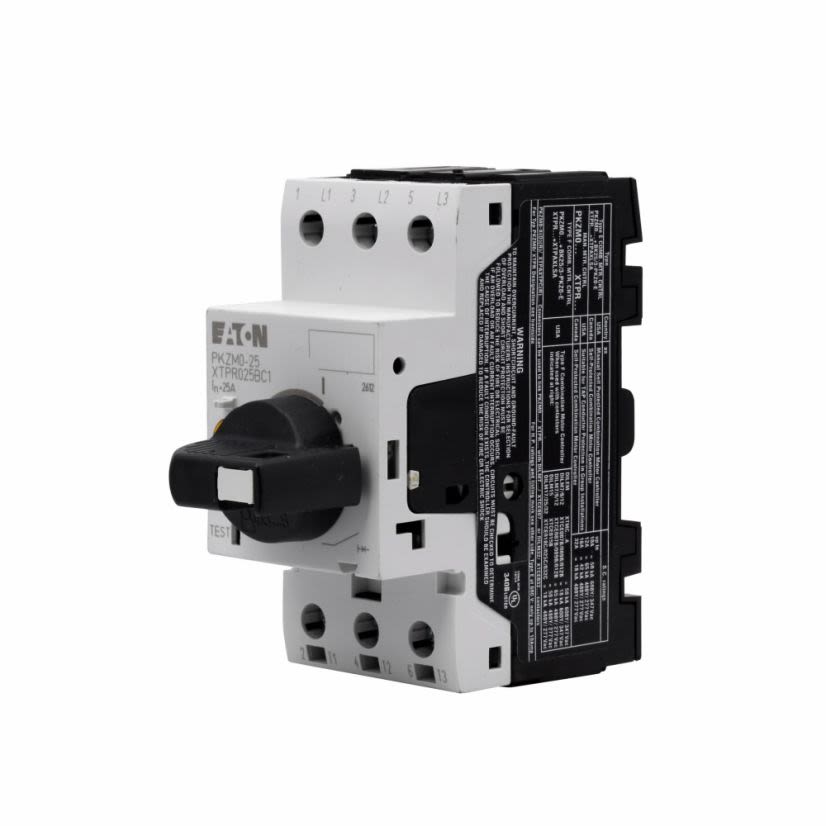

EATON XTPR025BC1 B-Frame Motor Protector, Rotary/On/Off Action, 3 Poles, IP20 Enclosure
Cutler-Hammer Series XTPR025BC1
EATON XTPR025BC1 B-Frame Motor Protector, Rotary/On/Off Action, 3 Poles, IP20 EnclosureNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #XTPR025BC1
Werner Part #3966677
UPC4015082653446
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #XTPR025BC1
Werner Part #3966677
UPC4015082653446
Product Description
EATON Motor Protector, B-Frame, Series: XT Series, 690 V AC, 25 A, 40 to 60 Hz Frequency, 22 kW Wattage, 3 Pole, Setting: 32 A, Manual Reset, 3 ph, Screw Connection, Rotary/On/Off Action, Bi-Metal Overload Relay, 20 to 25 A Full Load, 1NO-1NC Auxiliary, Rotary Control, IP20 Enclosure, -25 to 55 deg C Operating, 45 mm L x 94 mm W x 93 mm H Dimensions
Attributes
Documents
Applications
Features
Attributes
ActionRotary/ON/OFF
Connection TypeScrew
Country of OriginDE
Dimensions45 mm L x 94 mm W x 93 mm H
Enclosure TypeIP20
Frequency Rating40 to 60 Hz
Full Load Current20 to 25 A
ManufacturerEaton
Number of Poles3
Operating Temperature-25 to 55 deg C
Phase3
SeriesXT Series
Type / StyleB-Frame
Wattage22 kW
Documents
Applications
Commercial, Institutional Buildings, Structures - Safety and Security Systems
Features
- On/off rotary handle with lockout provision
- Visible trip indication
- Class 10 overload protection
- Phase loss sensitivity
- Ambient temperature compensation to IEC/EN 60947, VDE 0660
- Fixed short circuit trip 14 times maximum setting of overload FLA dial
- Type 2 coordination
- Identification markers standard on starter faceplate
- Built-in heater and magnetic trip elements to protect the motor
- Adjustment dial for setting to motor FLA
- Din rail mounting
- 45 mm frame
