Cutler-Hammer Series XTPR016BC1

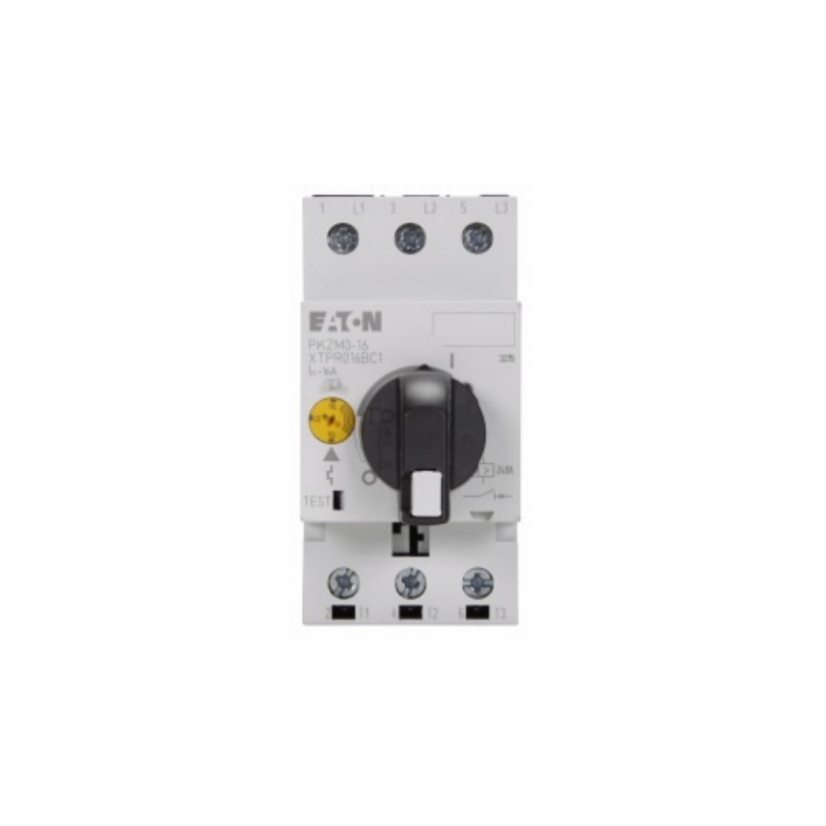

EATON XTPR016BC1 B-Frame Manual Motor Protector, Rotary/ON/OFF Action, 3 Poles, IP20 Enclosure
Cutler-Hammer Series XTPR016BC1
EATON XTPR016BC1 B-Frame Manual Motor Protector, Rotary/ON/OFF Action, 3 Poles, IP20 EnclosureIn Stock: 2more info
|
In Stock: 2more info
|
Product Description
EATON Manual Motor Protector, B-Frame, Series: XT Series, 690 V AC, 16 A, 40/60 Hz Frequency, 12.5 kW Wattage, 3 Pole, Setting: 32 A, Manual Reset, 3 ph, Screw Connection, Rotary/ON/OFF Action, Bi-Metal Overload Relay, 10 to 16 A Full Load, 1NO-1NC Auxiliary, IP20 Enclosure, -25 to 55 deg C Operating, 45 mm L x 94 mm W x 93 mm H Dimensions
Attributes
Documents
Applications
Features
Specifications
Attributes
ActionRotary/ON/OFF
Connection TypeScrew
Country of OriginDE
Dimensions45 mm L x 94 mm W x 93 mm H
Enclosure TypeIP20
Frequency Rating40/60 Hz
Full Load Current10 to 16 A
GTIN04015082653422
ManufacturerEaton
Number of Poles3
Operating Temperature-25 to 55 deg C
Phase3
SeriesXT Series
Type / StyleB-Frame
Wattage12.5 kW
Documents
Applications
Commercial, Institutional Buildings, Structures - Safety and Security Systems
Features
- On-Off rotary handle with lockout provision
- Visible trip indication
- Phase loss sensitivity
- Identification markers standard on starter faceplate
- Built-in heater and magnetic trip elements to protect the motor
- 45 mm frame
- Overload protection, trip class 10 A
Specifications
Standards / Approvals: ARRA Compliant|BAA Compliant|RoHS Compliant|IGCC 4425
