Cutler-Hammer Series XTPB2P5BC1

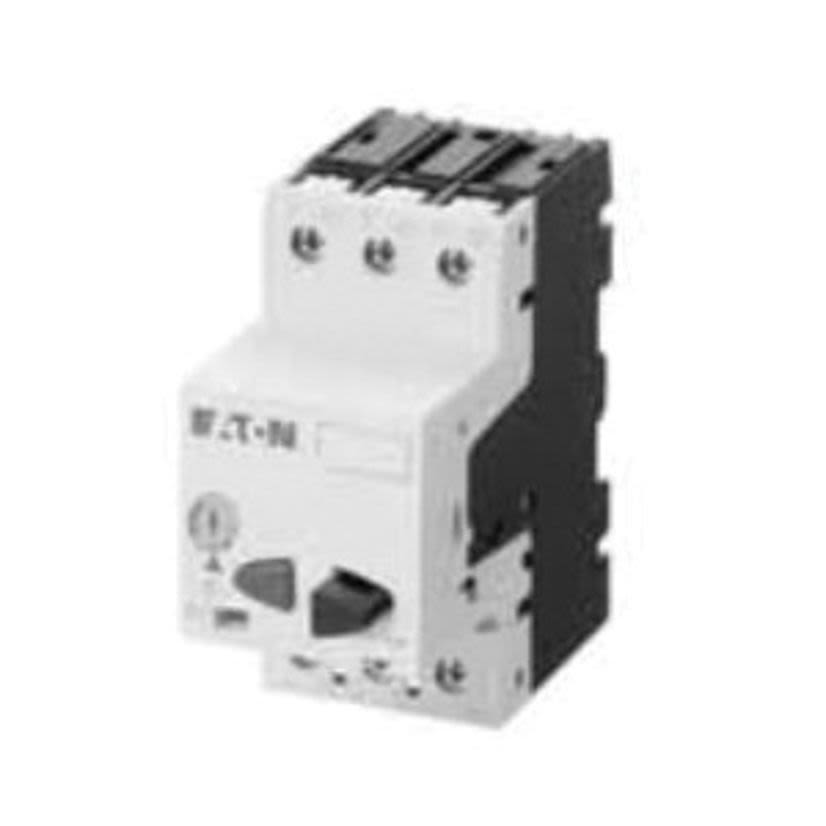

EATON XTPB2P5BC1 B Frame Motor Protector, ON/OFF Action, 1 Poles, IP20 Enclosure
Cutler-Hammer Series XTPB2P5BC1
EATON XTPB2P5BC1 B Frame Motor Protector, ON/OFF Action, 1 Poles, IP20 EnclosureNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
EATON Motor Protector, B Frame, Series: XT Series, 690 V AC, 2.5 A, 40 to 60 Hz Frequency, 1.5 kW Wattage, 1 Pole, Setting: 25 A, Manual Reset, 3 ph, Screw Connection, ON/OFF Action, Bi-Metal Overload Relay, 1.6 to 2.5 A Full Load, Pushbutton Control, IP20 Enclosure, -25 to 55 deg C Operating, 1.77 in W x 3.35 in D x 3.66 in H Dimensions
Attributes
Documents
Applications
Warranty
Features
Attributes
ActionON/OFF
Connection TypeScrew
Country of OriginDE
Dimensions1.77 in W x 3.35 in D x 3.66 in H
Enclosure TypeIP20
Frequency Rating40 to 60 Hz
Full Load Current1.6 to 2.5 A
ManufacturerEaton
Number of Poles1
Operating Temperature-25 to 55 deg C
Phase3
SeriesXT Series
Type / StyleB Frame
Wattage1.5 kW
Documents
Applications
Commercial, Institutional Buildings, Structures - Safety and Security Systems
Warranty
1 year
Features
- On/off rotary handle with lockout provision
- Visible trip indication
- Class 10 overload protection
- Phase loss sensitivity
- Ambient temperature compensation to IEC/EN 60947, VDE 0660
- Fixed short circuit trip 14 times maximum setting of overload FLA dial
- Type 2 coordination
- Identification markers standard on starter faceplate
- Built-in heater and magnetic trip elements to protect the motor
- Adjustment dial for setting to motor FLA
- Din rail mounting
- 45 mm frame
