Cutler-Hammer Series AN59KN0A5E100

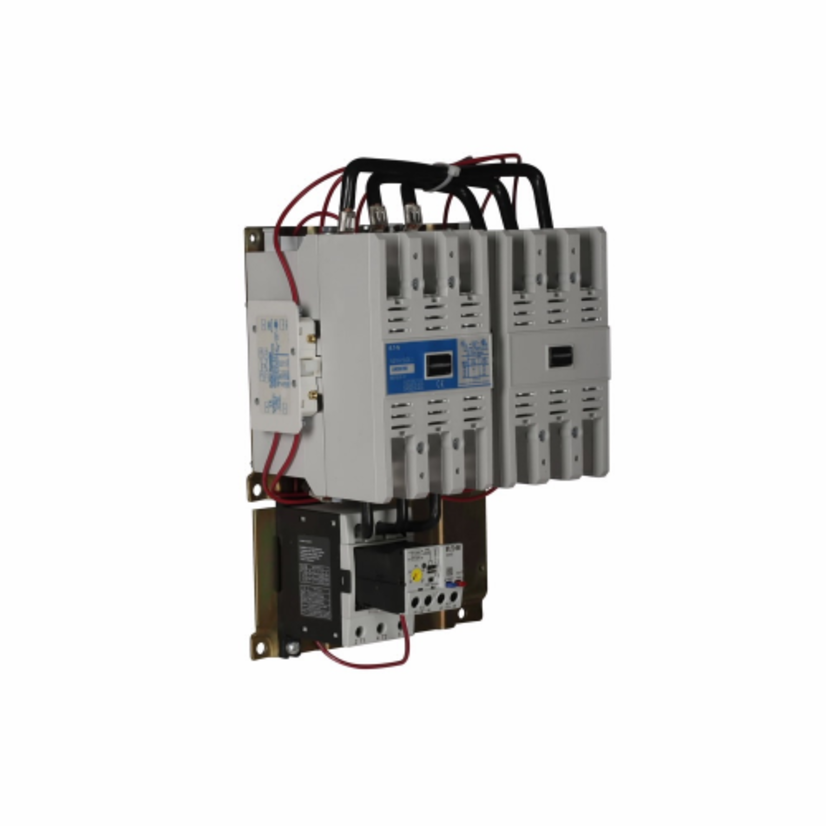

EATON AN59KN0A5E100 Freedom Open NEMA Starter With C440 EOLR Standard Feature Set, SEL Reset, SEL Class (10a, 10, 20, 30), 110/120 VAC V Coil, Reversing Action, 3 Poles, NEMA 3 Enclosure
Cutler-Hammer Series AN59KN0A5E100
EATON AN59KN0A5E100 Freedom Open NEMA Starter With C440 EOLR Standard Feature Set, SEL Reset, SEL Class (10a, 10, 20, 30), 110/120 VAC V Coil, Reversing Action, 3 Poles, NEMA 3 EnclosureOut of Stockmore info
|
Out of Stockmore info
|
Product Description
EATON NEMA Starter, Open, Series: Freedom, 600 V AC, 90 A, 50/60 Hz, 50 hp Motor, 110/120 VAC Coil, 3 Pole, Reversing, C440 Electronic Overload Relay, 20 to 100 A Full Load, NEMA 3, 6 x 8.08 x 11.35 in
Attributes
Documents
Applications
Warranty
Features
Attributes
ActionReversing
Coil Voltage110/120 V AC
Country of OriginDO
Dimensions6 x 8.08 x 11.35 in
Enclosure TypeNEMA 3
Frequency Rating50/60 Hz
Full Load Current20 to 100 A
ManufacturerEaton
Number of Poles3
SeriesFreedom
Type / StyleOpen
Applications
Electrical Assemblies, Panels and OEMs Applications
Warranty
1 year
Features
- Screw type power terminals have captive, backed out self-lifting pressure plates with +/- screws - reduced wiring time
- Accessible terminals allow for ease of use and are convenient for simple wiring
- Top located contactor magnet coils have three terminals which permit either top or diagonal wiring and are readily accessible, for easy replacement without changing wiring layout
- Standard feature set, SEL reset, SEL class (10A, 10, 20, 30) C440 EOLR
- 25 hp at 208 VAC, 30 hp at 240 VAC, 50 hp at 480 VAC horsepower rating
