Cutler-Hammer Series AN19GN0A5E045

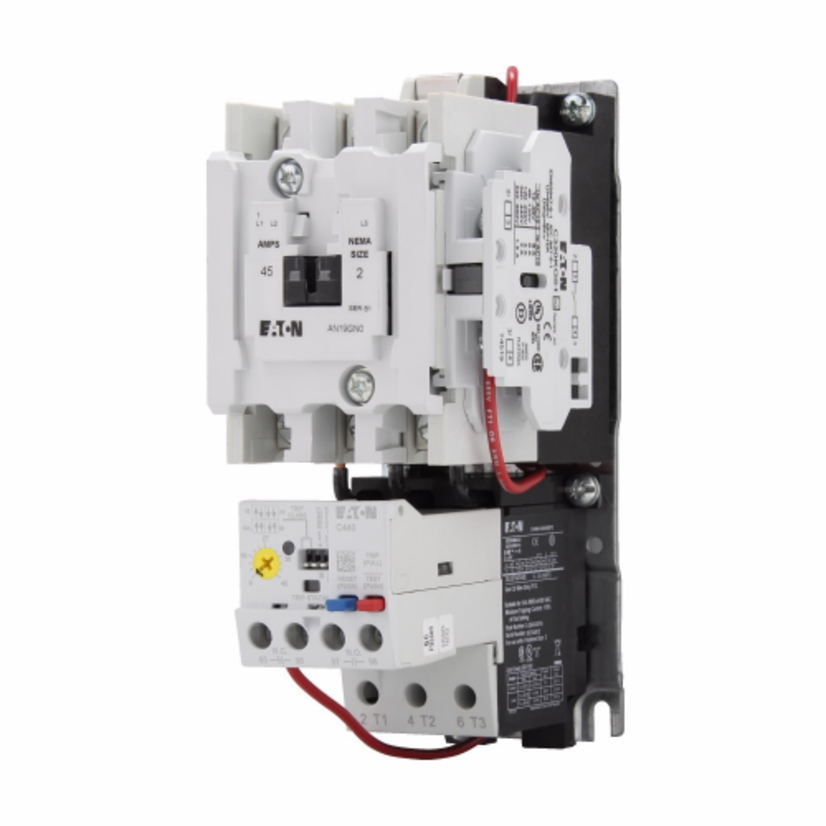

EATON AN19GN0A5E045 Freedom Full Voltage Open NEMA Starter With C440 EOLR Standard Feature Set, SEL Reset, SEL Class (10a, 10, 20, 30), 110/120 VAC V Coil, Non-Reversing Action, 3 Poles, NEMA 2 Enclosure
Cutler-Hammer Series AN19GN0A5E045
EATON AN19GN0A5E045 Freedom Full Voltage Open NEMA Starter With C440 EOLR Standard Feature Set, SEL Reset, SEL Class (10a, 10, 20, 30), 110/120 VAC V Coil, Non-Reversing Action, 3 Poles, NEMA 2 EnclosureIn Stock: 2more info
|
In Stock: 2more info
|
Product Description
EATON NEMA Starter, Full Voltage Open, Series: Freedom, 600 V AC, 45 A, 50/60 Hz, 25 hp Motor, 110/120 VAC Coil, 3 Pole, Non-Reversing, C440 Electronic Overload Relay, 9 to 45 A Full Load, NEMA 2, 4.98 x 2.6 x 7.1 in
Attributes
Documents
Applications
Features
Specifications
Warranty
Attributes
ActionNon-Reversing
Coil Voltage110/120 V AC
Country of OriginDO
Dimensions4.98 x 2.6 x 7.1 in
Enclosure TypeNEMA 2
Frequency Rating50/60 Hz
Full Load Current9 to 45 A
GTIN00786685415420
ManufacturerEaton
Number of Poles3
SeriesFreedom
Type / StyleFull Voltage Open
Documents
Applications
Electrical Assemblies, Panels and OEMs Applications
Features
- Screw type power terminals have captive, backed out self-lifting pressure plates with +/- screws - reduced wiring time
- Accessible terminals allow for ease of use and are convenient for simple wiring
- Top located contactor magnet coils have three terminals which permit either top or diagonal wiring and are readily accessible, for easy replacement without changing wiring layout
- Standard feature set, SEL reset, SEL class (10A, 10, 20, 30) C440 EOLR
- 3 hp at 115 VAC, 7-1/2 hp at 230 VAC, 10 hp at 208 VAC, 15 hp at 240 VAC, 25 hp at 480 VAC horsepower rating
Specifications
Standards / Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 886|CSA C22.2 No 30|NEC Certified|CEC Certified
Warranty
1 year
