Cully 40483J

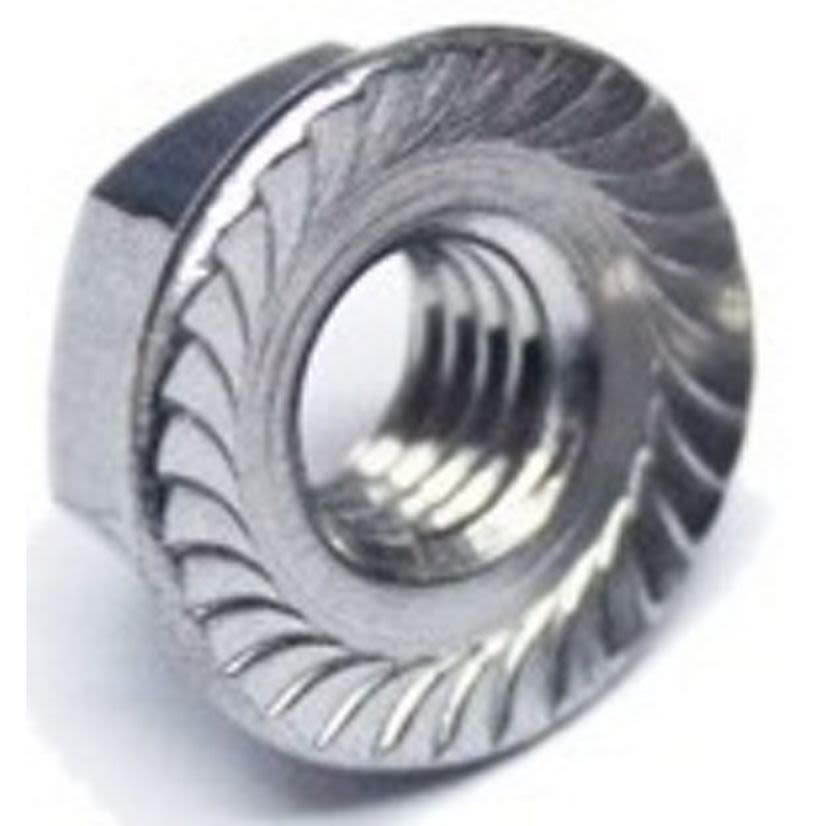

Cully 40483J Serrated Flange Whiz Nut, 1/2-13, Steel, Zinc Plated
Cully 40483J
Cully 40483J Serrated Flange Whiz Nut, 1/2-13, Steel, Zinc PlatedNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Cully Flange Whiz Nut, Serrated, Measurement System: Imperial, 1/2-13 Thread, Steel, Zinc Plated, Right Thread, UNC Thread, 3/4 in Width Across Flats, HR15N 78 to 90 Hardness, Silver
Attributes
Documents
Features
Specifications
Attributes
ColorSilver
Country of OriginCN
Dimensions0.87 in L x 1.35 in W x 2.42 in H
FinishZinc Plated
Load Capacity60 lb
ManufacturerMinerallac Company
MaterialSteel
Measurement SystemImperial
Mounting TypeBolted-On
Suitable For Use With1 in EMT/Rigid/IMC Conduit
Thread SizeDiameter: 1/2-13
Thread TypeUNC
TypeSerrated
Type / StyleSerrated
Documents
Features
- Requires a greater amount of torque to loosen than to tighten the nut
- Will span oversized or poorly aligned holes
- Does not gall screw threads
- 0.458 in THK
- Flange provides a more uniform bearing stress to clamp force ratio than other low carbon lock nuts
- Hex nut with an enlarged circular base flaring out from the bottom of the nut
- The bearing surface of the flange has serrations which displace material on the mating surface when the nut is wrenched into place, forming a connection to resist loosening
- Product comes packaged in a jar
Specifications
Silver Color, 1/4 in Rod, (1) 1/4 in Mounting Hole OC
