Cully 40480J

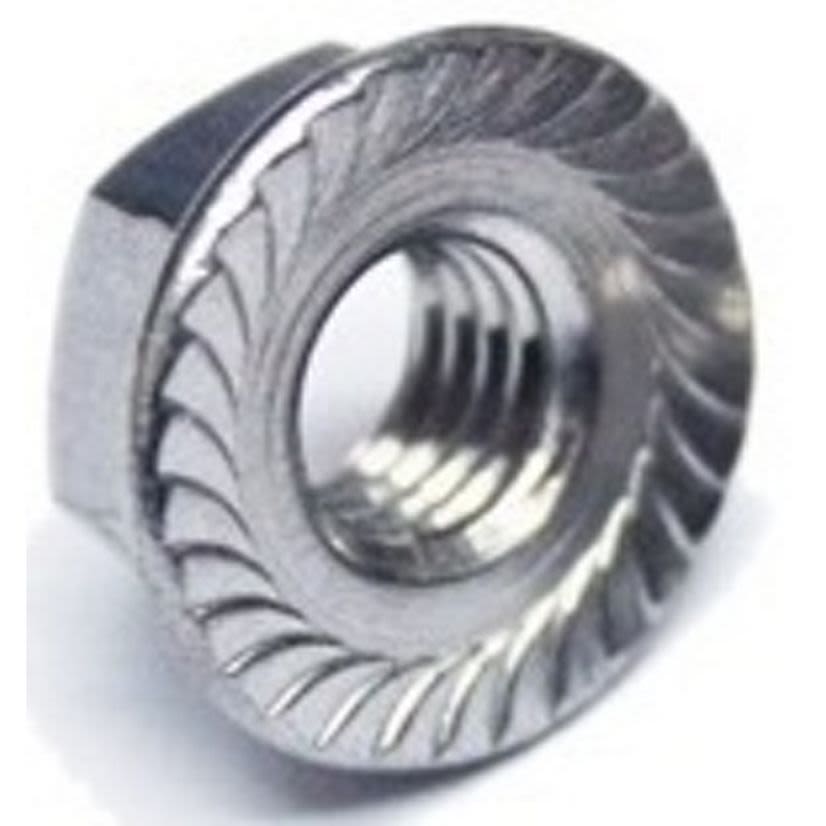

Cully 40480J Hex Serrated Flange Whiz Lock Nut, 1/4-20, Steel, Zinc Plated
Cully 40480J
Cully 40480J Hex Serrated Flange Whiz Lock Nut, 1/4-20, Steel, Zinc PlatedInventory Not Available
Inventory Not Available
Product Description
Cully Flange Whiz Lock Nut, Hex Serrated, Measurement System: Imperial, 1/4-20 Thread, Steel, Zinc Plated, Right Thread, Coarse Thread, 0.438 in Width Across Flats, HR15N 78 to 90 Rockwell Hardness, Silver
Attributes
Documents
Features
Specifications
Attributes
ColorSilver
Country of OriginCN
Dimensions0.87 in L x 1.75 in W x 2.95 in H
FinishZinc Plated
Load Capacity80 lb
ManufacturerMinerallac Company
MaterialSteel
Measurement SystemImperial
Mounting TypeBolted-On
Suitable For Use With1-1/2 in EMT and 1-1/4 in Rigid/IMC Conduit
Thread SizeDiameter: 1/4-20
Thread TypeCoarse
TypeHex Serrated
Type / StyleHex Serrated
Documents
Features
- Requires a greater amount of torque to loosen than to tighten the nut
- Will span oversized or poorly aligned holes
- Does not gall screw threads
- Flange provides a more uniform bearing stress to clamp force ratio than other low carbon lock nuts
- Hex nut with an enlarged circular base flaring out from the bottom of the nut
- The bearing surface of the flange has serrations which displace material on the mating surface when the nut is wrenched into place, forming a connection to resist loosening
Specifications
Silver Color, 1/4 in Rod, (1) 1/4 in Mounting Hole OC
