Harger UPC8C

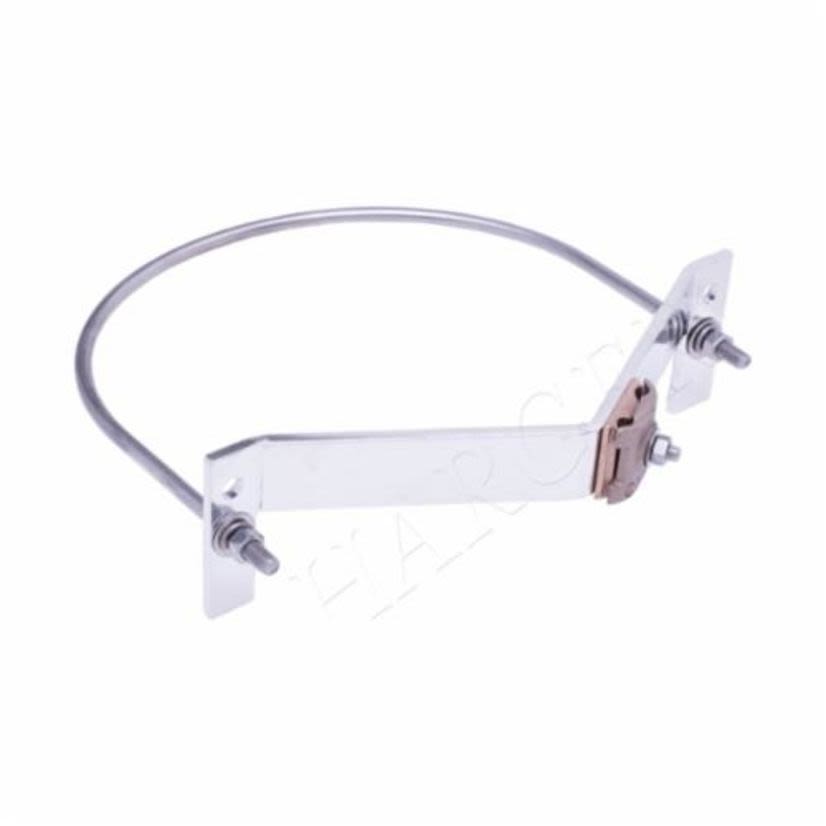

Harger UPC8C Universal Pipe Clamp, 8 in Pipe, Copper, Electro-Plated Tin
Harger UPC8C
Harger UPC8C Universal Pipe Clamp, 8 in Pipe, Copper, Electro-Plated TinInventory Not Available
BrandHarger
MFG #UPC8C
Werner Part #3972253
UPC808475023735
Inventory Not Available
BrandHarger
MFG #UPC8C
Werner Part #3972253
UPC808475023735
Product Description
Harger Pipe Clamp, Universal, 8 in Pipe, 210 in-lb Torque, Copper, Electro-Plated Tin
Attributes
Documents
Included
Features
Specifications
Attributes
Country of OriginUS
FinishElectro-Plated Tin
ManufacturerHarger Lightning & Grounding
MaterialCopper
Pipe Size10 in
TypeUniversal
Type / StyleUniversal
Documents
Included
Stainless Steel Hardware
Features
- Lug ends are 1/4 in x 1 in and have holes that are 7/16 in diameter 1 in on centre spacing
- Provides bi-directional grounding capabilities making it the perfect connection for grounding large diameter pipes
- Clamps include mechanical connector to connect ground conductors No. 6 AWG thru 250 MCM
- Clamps can also be connected to ground conductors via exothermic connections and/or standard compression lugs
- Provides 1-1/2 in of contact area to ensure sufficient electrical contact for both ground fault and lightning current
- For conductors larger than 250 MCM exothermically weld to the clamp
- Rated for direct burial
- Exothermic connection
- Conductive tinned copper material
Specifications
210 in-lb Torque
