Superstrut 700-3/4-STR

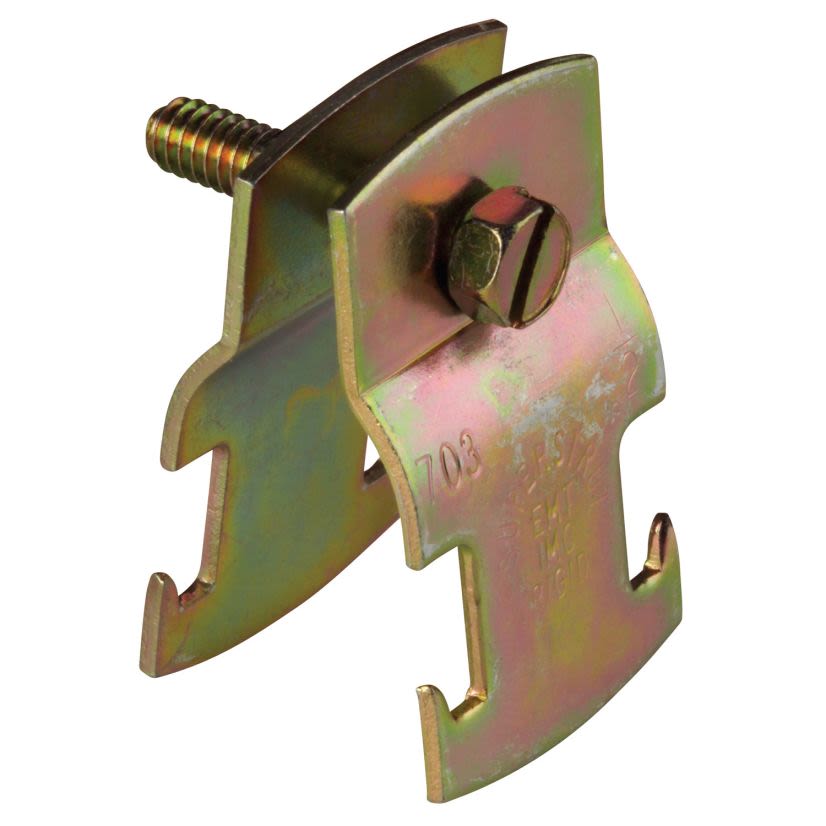

Superstrut 700-3/4-STR Pipe Strap, 3/4 in Nominal, Steel
Superstrut 700-3/4-STR
Superstrut 700-3/4-STR Pipe Strap, 3/4 in Nominal, SteelOut of Stockmore info
|
Out of Stockmore info
|
Product Description
Superstrut Pipe Strap, Series: 700, 3/4 in Nominal, Through Hole Mount, For Use With: EMT Conduit, Steel, GoldGalv, 0.922 in OD
Attributes
Documents
Applications
Features
Attributes
Country of OriginUS
Dimensions0.922 in OD
FinishGoldGalv
ManufacturerABB
MaterialSteel
Measurement SystemImperial
Nominal Size3/4 in
Return & Cancellation PolicyNonreturnable/Noncancellable
Series700
Suitable For Use WithEMT Conduit
Thread Size Diameter5-16/18 in
Thread TypeUNC
TypeFinished
Type / StylePipe Straps, Pipe Clamps & Hangers (Series 700)
Applications
For designed to be twist inserted anywhere along the slot side of the channel
Features
- Bolt head is combination slot and hex head for flexibility of attachment
- Square nut is captivated on the shoulder for easy one handed tightening
- Straps are interchangeable with 1-1/2 in strut for broader application
- Straps are shipped assembled so counting and sorting are easier
- Pipe and conduit sizes are shown on the strap for easy identification
- 750 lb design load
- 3 safety factor
- 2-piece construction
