B-Line Series FIG 69R 1/2X14 RFCRTSTRP PGL

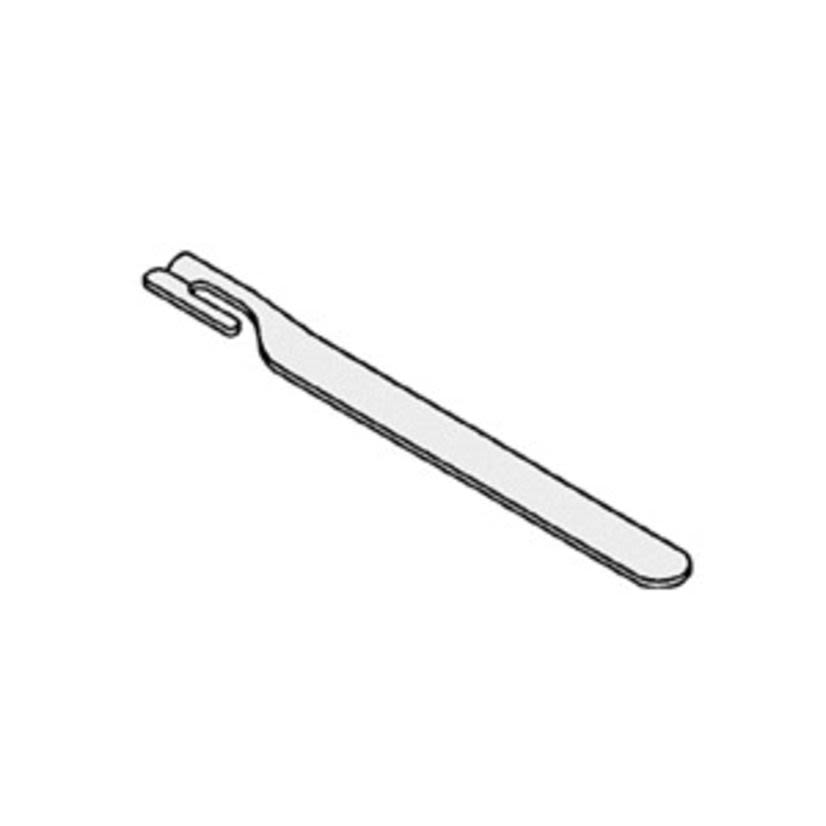

B-Line TOLCO FIG 69R 1/2X14 RFCRTSTRP PGL Retrofit Capable Beam Clamp Retaining Strap, Steel, Pre-Galvanized
B-Line Series FIG 69R 1/2X14 RFCRTSTRP PGL
B-Line TOLCO FIG 69R 1/2X14 RFCRTSTRP PGL Retrofit Capable Beam Clamp Retaining Strap, Steel, Pre-GalvanizedNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
B-Line TOLCO Beam Clamp Retaining Strap, Retrofit Capable, For Use With: B3033-1/2 Wide Jaw, B3034-1/2 Top Flange C-Clamp, 65-1/2 and 66-1/2 Beam Clamp, 9/16 in Dia Hole, 1/2 in Rod, Steel, Pre-Galvanized, 14 in L x 1.214 in W x 0.318 in D
Attributes
Documents
Features
Specifications
Attributes
Country of OriginUS
Dimensions14 in L x 1.214 in W x 0.318 in D
FinishPre-Galvanized
ManufacturerEaton
MaterialSteel
Suitable For Use WithB3033-1/2 Wide Jaw, B3034-1/2 Top Flange C-Clamp, 65-1/2 and 66-1/2 Beam Clamp
TypeRetrofit Capable
Type / StyleRetrofit Capable
Documents
Features
- To offer more secure fastening of various types of beam clamps to beam where danger of movement might be expected
- NFPA 13 requires the use of retaining straps with all beam clamps installed in earthquake areas
- Satisfies requirements of NFPA 13
Specifications
9/16 in Dia Hole, 1/2 in Rod
