Powers 7412SD1-PWR

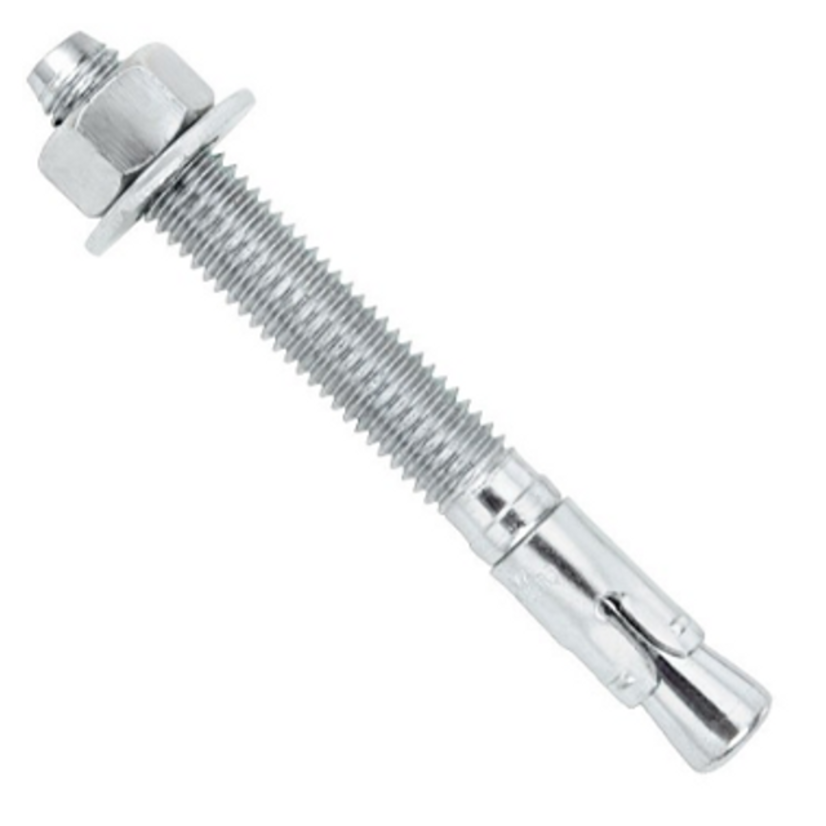

DeWALT 7412SD1-PWR SD1 Expansion Wedge Anchor, 3/8 in Dia, 2-3/4 in OAL, 1-3/8 in L Thread, Carbon Steel, Zinc Plated
Powers 7412SD1-PWR
DeWALT 7412SD1-PWR SD1 Expansion Wedge Anchor, 3/8 in Dia, 2-3/4 in OAL, 1-3/8 in L Thread, Carbon Steel, Zinc PlatedOut of Stockmore info
|
BrandPowers
MFG #7412SD1-PWR
Werner Part #4083829
UPC075352775951
Out of Stockmore info
|
BrandPowers
MFG #7412SD1-PWR
Werner Part #4083829
UPC075352775951
Product Description
DeWALT, 7412SD1-PWR, Expansion Wedge Anchor, Series: SD1, 3/8 in Diameter, 2-3/4 in Overall Length, 1-3/8 in Thread Length, Carbon Steel, Zinc Plated, 1-5/8 in Minimum Embedment Depth, 3/8 in Drill, 3/8-16 Thread, Threaded Stud Head, UNC Thread, 3/4 in Maximum Work Thickness, 2540 lb Shear Strength, 3100 lb Tensile Strength
Attributes
Documents
Applications
Features
Included
Attributes
Country of OriginCN
Diameter3/8 in
Drill Size3/8 in
FinishZinc Plated
Grade2
Head Size1/2 in W x 13/64 in H
Head TypeThreaded Stud
ManufacturerStanley Black & Decker
MaterialCarbon Steel
Measurement SystemImperial
Minimum Embedment Depth1-5/8 in
Overall Length2-3/4 in
SeriesSD1
Thread Length1-3/8 in
Thread Size3/8-16
Thread Size Diameter5-16/18 in
Thread TypeUNC
TypeExpansion
Documents
Applications
Structural Connections, Beam, Column Anchorage, Safety Related Attachments, Interior Applications, Low Level Corrosion Environment, Tension Zone Applications, Cable Trays and Strut, Pipe Supports and Fire Sprinkler Applications
Features
- Consistent performance in high and low strength concrete
- Anchor can be installed through standard fixture holes
- Anchor design allows for follow-up expansion after setting under tensile loading ultimate pullout 5440 lb
- Nominal drill bit diameter same as Anchor diameter
- Length ID code and identifying marking stamped on head of each Anchor
- Ultimate load capacity - 2240 lb tensile strength when embedded in 2500 psi, 2685 lb tensile strength when embedded in 3000 psi, 3100 lb tensile strength when embedded in 4000 psi normal-weight concrete
- Normal weight concrete, structural sand-light weight concrete, concrete over steel deck and grouted concrete masonry are applicable materials
Included
Carbon Steel Expansion Clip, Nut and Washer
