Cully 61413J

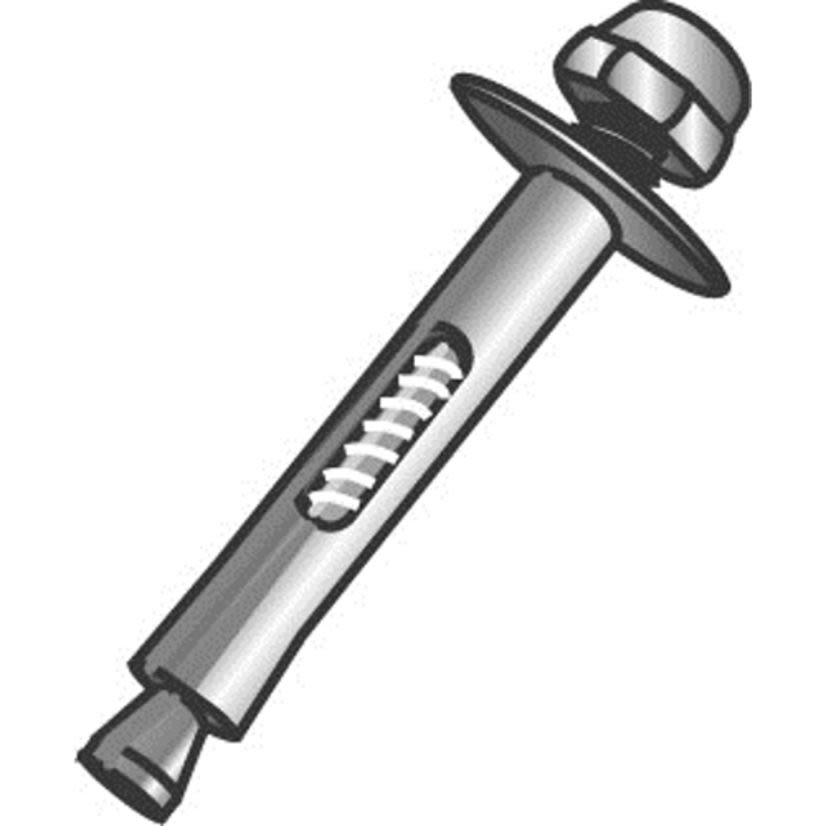

Minerallac Cully 61413J Medium Duty Concrete Sleeve Anchor, 1/4 in Dia, #10-24 Thread, Steel, Acorn Nut/Washer Head
Cully 61413J
Minerallac Cully 61413J Medium Duty Concrete Sleeve Anchor, 1/4 in Dia, #10-24 Thread, Steel, Acorn Nut/Washer HeadOut of Stockmore info
|
Out of Stockmore info
|
Product Description
Minerallac Cully Concrete Sleeve Anchor, Medium Duty, 1/4 in Dia, #10-24, Steel, Acorn Nut/Washer, Zinc Plated, 1-3/8 in Minimum Embedment Depth, Class 2A, 3/8 in Thread Length, 1-3/8 in Overall Length, 0.618 in Head, 1/4 in Drill
Attributes
Documents
Applications
Included
Features
Specifications
Attributes
Country of OriginCN
Diameter1/4 in
Dimensions0.875 in L x 2.05 in W x 1.05 in H
Drill Size1/4 in
FinishZinc Plated
Head Size0.618 in
Head TypeAcorn Nut/Washer
Load Capacity30 lb
ManufacturerMinerallac Company
MaterialSteel
Minimum Embedment Depth1-3/8 in
Overall Length1-3/8 in
Suitable For Use With3/4 in EMT Conduit
Thread Length3/8 in
Thread Size#10-24
Thread TypeClass 2A
TypeMedium Duty
Type / StyleMedium Duty
Documents
Applications
For brick, cinder block, thin wall and solid concrete
Included
Washer and Acorn Nut
Features
- Acorn nut heads for a finished look and are suitable for medium duty fastening jobs in block, masonry and concrete base materials
- Can be removed after installations
- Use same drill size as bolt diameter
Specifications
Silver Color, 0.12 in THK, 1/4 in Mounting Hole OC
