Cully 60216J

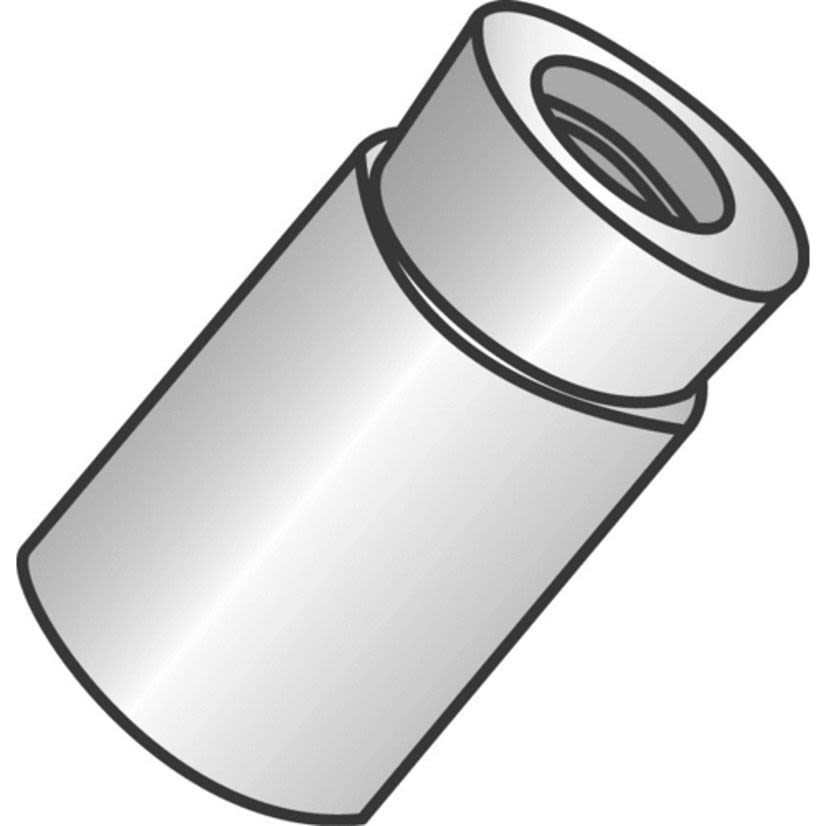

Minerallac Cully 60216J Machine Screw Anchor, 3/8 in Dia, 1.3 in OAL, Lead, 1-1/4 in D Min Embedment
Cully 60216J
Minerallac Cully 60216J Machine Screw Anchor, 3/8 in Dia, 1.3 in OAL, Lead, 1-1/4 in D Min EmbedmentIn Stock: 950more info
|
In Stock: 950more info
|
Product Description
Minerallac Cully Machine Screw Anchor, 3/8 in Diameter, 1.3 in Overall Length, Lead, 1-1/4 in Minimum Embedment Depth, 3/4 in Drill, Applicable Materials: Block/Brick/Concrete, Internal Thread, 3/8-16 Thread, 1 in Thread Length
Attributes
Documents
Applications
Features
Included
Specifications
Attributes
Country of OriginCN
Diameter3/8 in
Dimensions3-11/16 in L
Drill Size3/4 in
FinishZinc Plated
GTIN00085937081735
Load Capacity600 lb
ManufacturerMinerallac Company
MaterialLead
Minimum Embedment Depth1-1/4 in
Overall Length1.3 in
SeriesB422
Thread Length1 in
Thread Size3/8-16
Thread TypeInternal
TypeRight Angle
Type / StyleLead Machine Screw Anchor
Documents
Applications
For installation in older concrete where crumbling is a concern
Features
- Concrete machine screw anchors are female type concrete anchors designed for anchoring into concrete, brick or block
- Concrete machine screw anchors have internal machine screw threads
- Lead alloy molds itself to concrete surface for a tight fit
- Zamac 7 internally threaded core
- Requires layout or hole spotting
Included
Setting Tool
Specifications
7 ga THK
