Cully 60405

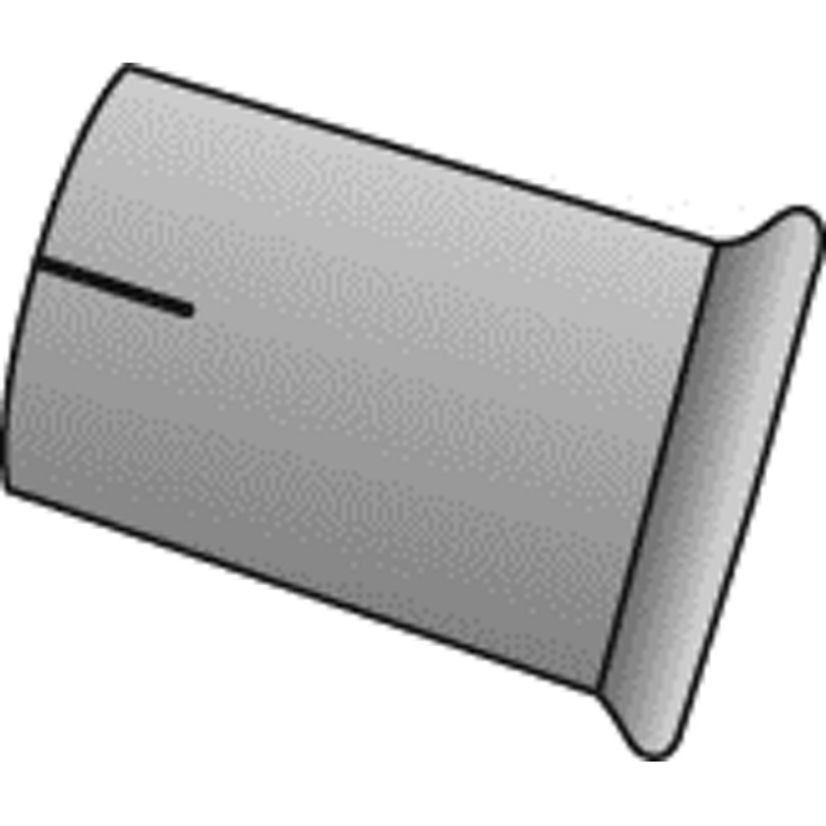

Minerallac Cully 60405 2-Piece Drop-In Anchor, Steel, 1/2 in Drill, 3/4 in D Min Embedment
Cully 60405
Minerallac Cully 60405 2-Piece Drop-In Anchor, Steel, 1/2 in Drill, 3/4 in D Min EmbedmentNon-stock product. Available to order - lead time may vary.
BrandCully
MFG #60405
Werner Part #3757214
UPC085937604057
Non-stock product. Available to order - lead time may vary.
BrandCully
MFG #60405
Werner Part #3757214
UPC085937604057
Product Description
Minerallac Cully Drop-In Anchor, 2-Piece, 3/8-16, Steel, 1/2 in Drill, 3/4 in Minimum Embedment Depth, Internal, Zinc Plated
Attributes
Documents
Applications
Included
Features
Attributes
Country of OriginCN
Drill Size1/2 in
FinishZinc Plated
ManufacturerMinerallac Company
MaterialSteel
Minimum Embedment Depth3/4 in
Thread Size3/8-16
Thread TypeInternal
Type2-Piece
Type / Style2-Piece
Documents
Applications
For use in solid concrete, hard stone and solid block
Included
Setting Tool
Features
- Use with machine screw, bolt or threaded rod
- Internally threaded expansion anchor
- Requires layout or hole spotting
- A two-piece, internally threaded expansion anchor with four equally spaced longitudinal slots extending from the bottom end of the outer shield, inside of which sits a pre-assembled dilating plug
- Can also be used to anchor handrails and floor mounted door stop
- Intended for flush mounted, medium to heavy duty applications in solid materials such as stone and concrete
- It can be used in, but are not limited to, overhead assemblies such as duct work and pipe hangers because the internal plug holds its position
- Shallow embedment
