nVent HOFFMAN STB151512

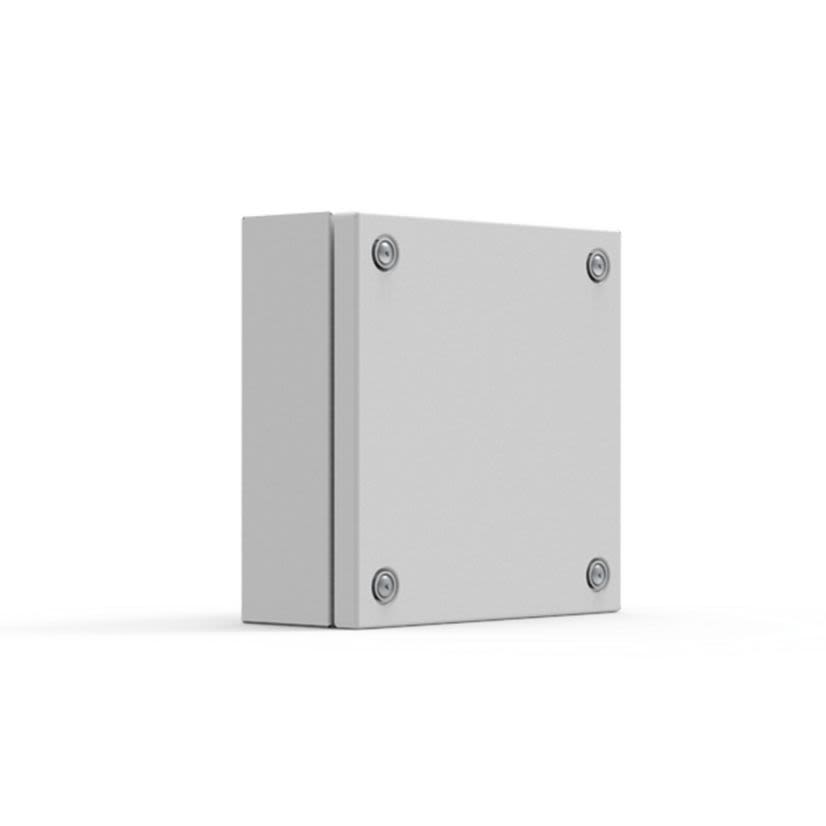

nVent HOFFMAN STB151512 Terminal Box Enclosure, 150 mm W x 120 mm D x 150 mm H, 4/12/13/IK08/IP66 NEMA Rating, Mild Steel
nVent HOFFMAN STB151512
nVent HOFFMAN STB151512 Terminal Box Enclosure, 150 mm W x 120 mm D x 150 mm H, 4/12/13/IK08/IP66 NEMA Rating, Mild SteelOut of Stockmore info
|
BrandnVent HOFFMAN
MFG #STB151512
Werner Part #4338567
UPC783510529420
Out of Stockmore info
|
BrandnVent HOFFMAN
MFG #STB151512
Werner Part #4338567
UPC783510529420
Product Description
nVent HOFFMAN Terminal Box Enclosure, Series: STB, 150 mm Width, 120 mm Depth, 150 mm Height, 4/12/13/IK08/IP66 NEMA Rating, Mild Steel, Powder Coated, Light Gray
Attributes
Documents
Applications
Features
Included
Specifications
Attributes
ColorLight Gray
Country of OriginBG
FinishPowder Coated
ManufacturernVent
MaterialMild Steel
NEMA Rating4/12/13/IK08/IP66
SeriesSTB
Documents
Applications
Indoor Applications
Features
- Body, Folded and seam welded
- Four 8.5 mm diameter holes for wall fixing
- Four M6 x 13 studs for bottom profiles / mounting plate fixation
- Gasket, Sealing is ensured by an injected one piece polyurethane gasket
Included
Body Cover, Cover Screw, Fixing Screw, Cover Plug and Earthing Facilities
Specifications
- cULus Listed per CSA C22.2 No. 0/0.4/14/94 Type 4 12, 13 File No. E92044
- EAC Certified
- GOST Certified
- IEC 62208 IP66
- KEMA KEUR Approved
- NEMA/EEMAC Type 4, 12, 13
- PCT Approved
- UL 508A Type 4, 12, 13 File No. E92044
