nVent HOFFMAN TX332816100

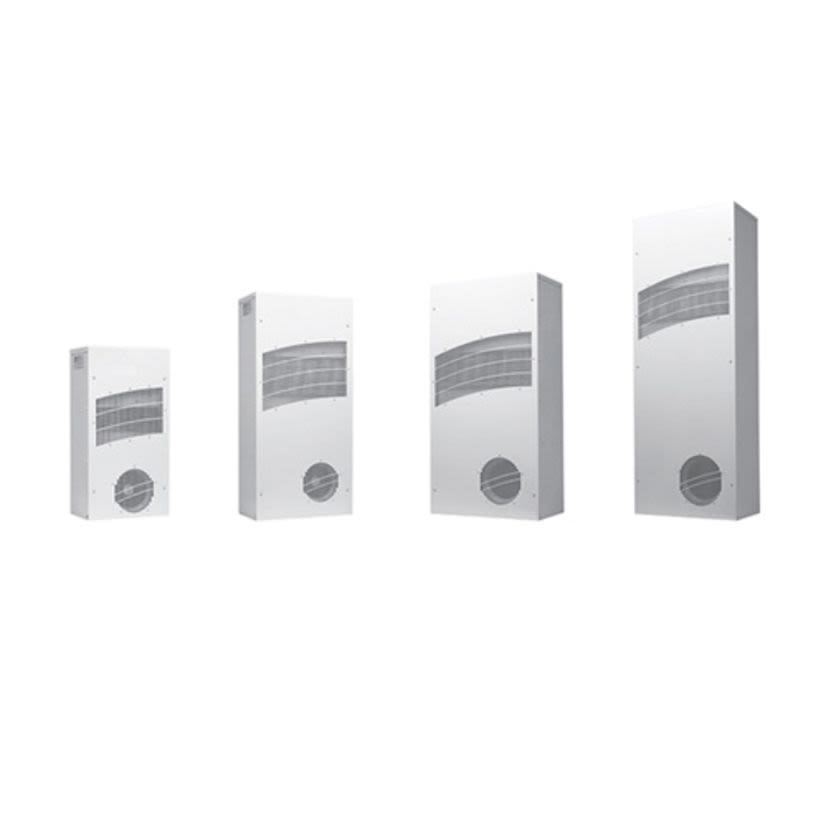

Hoffman ClimaGuard TX332816100 MCLHE Outdoor Heat Exchanger, 115 V AC, 1.4 A, 161 W Power Rating, NEMA 3R/4/12 Enclosure, 212 cfm Air Flow
nVent HOFFMAN TX332816100
Hoffman ClimaGuard TX332816100 MCLHE Outdoor Heat Exchanger, 115 V AC, 1.4 A, 161 W Power Rating, NEMA 3R/4/12 Enclosure, 212 cfm Air FlowInventory Not Available
BrandnVent HOFFMAN
MFG #TX332816100
Werner Part #3864120
UPC783510188566
Inventory Not Available
BrandnVent HOFFMAN
MFG #TX332816100
Werner Part #3864120
UPC783510188566
Product Description
Hoffman ClimaGuard Heat Exchanger, Outdoor, Series: TX33/MCLHE, 115 V AC, 1.4 A, 161 W Power, 50/60 Hz Frequency, NEMA 3R/4/12 Enclosure, 212 cfm, -40 to 149 deg F Ambient, Surface Mounting, Mild Steel, Light Gray, 33 in H x 15.7 in W x 8.1 in D Dimensions
Attributes
Documents
Applications
Features
Attributes
Air Flow Rate212 cfm
Amps1.4 A
BABA CompliantYes
ColorLight Gray
Country of OriginUS
Dimensions33 in H x 15.7 in W x 8.1 in D
Enclosure TypeNEMA 3R/4/12
Frequency Rating50/60 Hz
ManufacturernVent
MaterialMild Steel
Mounting TypeSurface
Power Rating161 W
SeriesTX33/MCLHE
Temperature Rating-40 to 149 deg F
TypeOutdoor
Type / StyleOutdoor
Voltage115 VAC
Voltage Rating115 V AC
Documents
Applications
For temperature extremes, corrosive environments and wind driven rain
Features
- Unique counterflow aluminum core for high efficiency and high performance heat transfer
- Models for 24 VDC, 48 VDC, 115 VAC and 230 VAC power supplies
- Variable speed blowers standard on DC powered units for quiet running
- Filterless design for low maintenance and easy cleaning
- Painted galvanized or stainless steel sheet-metal cover for rugged factory and outdoor environments
- Easy-mount flanges for simple installation
- Surface or recessed mount capable
- Every unit functionally tested before shipping
- Mounting hardware, gaskets and user manual furnished with the unit
