nVent HOFFMAN HF0916413

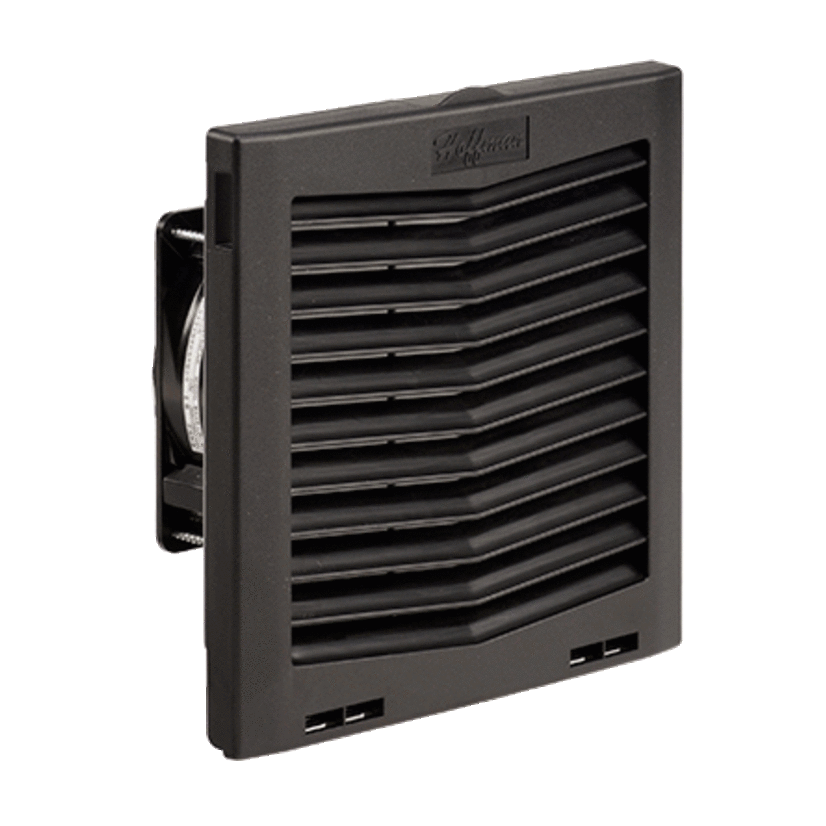

Hoffman HF0916413 MCLF Filter Fan, 115 V AC, 0.16/0.14 A, 11/10 W, 70 cfm, NEMA 12/IP54 Enclosure
nVent HOFFMAN HF0916413
Hoffman HF0916413 MCLF Filter Fan, 115 V AC, 0.16/0.14 A, 11/10 W, 70 cfm, NEMA 12/IP54 EnclosureIn Stock: 9more info
|
In Stock: 9more info
|
Product Description
Hoffman Filter Fan, Series: MCLF, 115 V AC, 0.16/0.14 A, 11/10 W, 43/46 dB, 70 cfm, 2600/2900 rpm, Side Mount, ABS Grille, NEMA 12/IP54, 8.19 in H x 8.21 in W x 4.15 in D
Attributes
Documents
Applications
Features
Attributes
Air Flow Rate70 cfm
Amps0.16/0.14 A
Country of OriginCN
Dimensions8.19 in H x 8.21 in W x 4.15 in D
Enclosure TypeNEMA 12/IP54
ManufacturernVent
Mounting TypeSide
Power Rating11/10 W
SeriesMCLF
Sound Level43/46 dB
Speed2600/2900 rpm
Type / StyleFilter Fan
Voltage115 VAC
Voltage Rating115 V AC
Documents
Applications
Industrial Automation, Automotive Assembly, Package Handling Equipment, Food and Beverage Process Controls and Wind Energy Systems Applications
Features
- Click-Fit design quickly installs into enclosure wall, no tools or screws required
- Opens with the flick of a finger for easy filter replacement
- Reverse airflow option on HF13 models available to push/pull air through higher static pressure
- Standard rope gasket provides proper seal to the enclosure
- Similar cut-out sizes as other filter fan manufacturers
- Terminal block connections
- Optional thermostat available to save energy and extend service life
- Hinged grille remains attached after opening
- Size rage from 4 in (102 mm) to 13 in (325 mm)
