nVent HOFFMAN AID1412

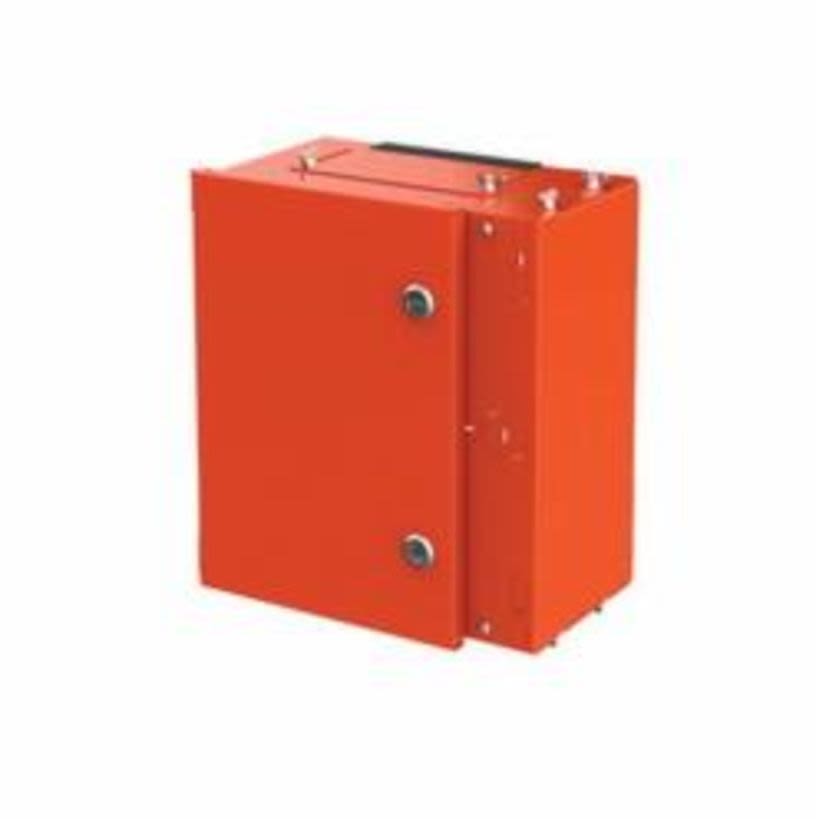

Hoffman AID1412 A70ID Small Internal Disconnect Shield, Steel, Safety Orange
nVent HOFFMAN AID1412
Hoffman AID1412 A70ID Small Internal Disconnect Shield, Steel, Safety OrangeIn Stock: 3more info
|
In Stock: 3more info
|
Product Description
Hoffman Internal Disconnect Shield, Small, Series: A70ID, For Use With: Wall Mount Disconnects, Steel, Safety Orange, 13-1/2 in H x 12 in W x 6-1/2 in D
Attributes
Documents
Included
Features
Attributes
ColorSafety Orange
Country of OriginMX
Dimensions13-1/2 in H x 12 in W x 6-1/2 in D
ManufacturernVent
MaterialSteel
SeriesA70ID
Suitable For Use WithWall Mount Disconnects
TypeSmall
Type / StyleSmall
Documents
Included
Panel Mounting Screw, Key, Grommet, Installation Instructions
Features
- Quarter-turn slotted latch
- Spring-loaded slam latch with 7mm square insert for automatic latching
- 110 deg door stop to prevent incidental contact
- Wing nuts for gland plates for tool-less installation
- Ground stud on door and body
- Open back with mounting holes on back flanges for mounting on main enclosure sub-panel
- Knock-outs for variable-depth or cable-operated disconnect switches
- Symmetrically designed to use with left-hand or right-hand disconnect switches
