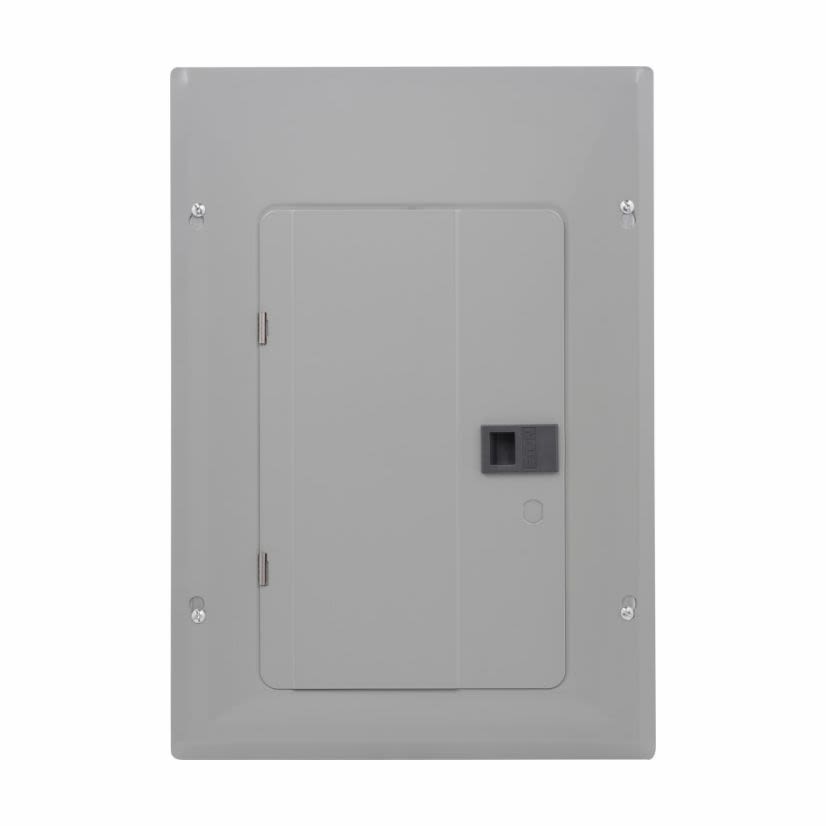

Cutler-Hammer Series BRP20L125
EATON BRP20L125 1-Phase Insulated/Bondable Split Main Lug Neutral Load Center, 120/240 V AC, 125 A, 1 Poles, 10 kA Interrupt
Cutler-Hammer Series BRP20L125
EATON BRP20L125 1-Phase Insulated/Bondable Split Main Lug Neutral Load Center, 120/240 V AC, 125 A, 1 Poles, 10 kA InterruptIn Stock: 2more info
|
In Stock: 2more info
|
Product Description
EATON Main Lug Neutral Load Center, 1-Phase Insulated/Bondable Split, 120/240 V AC, 125 A, 1 Pole, 10 kA Interrupt, 40 Circuits, BR/BRP Breaker, 3-Wire Wiring Configuration, 20 Spaces, 6 to 2/0 AWG Wire, Plug-On Mounting, NEMA 1 Enclosure, X2 Enclosure Box, Galvanized Steel Housing Material, 21 in L x 14.31 in W x 3.88 in H Dimensions
Attributes
Documents
Applications
Features
Included
Warranty
Attributes
Breaker TypeBR/BRP
Country of OriginUS
Dimensions21 in L x 14.31 in W x 3.88 in H
Enclosure Box SizeX2
Enclosure TypeNEMA 1
Housing MaterialGalvanized Steel
Interrupt Rating10 kA
ManufacturerEaton
Mounting TypeTop
Number of Circuits40
Number of Poles1
Number of Spaces20
Size of Wire4 to 4/0 AWG
Type1-Phase Insulated/Bondable Split
Wiring Configuration3-Wire
Applications
Indoor, Residential, Light Commercial, Electrical Assemblies, Panels and OEMs Applications
Features
- Extra 1-1/2 in knockout, larger knockout provides easier installation and time savings
- Straight-in wiring saves labor and material
- 1-panel for either top or bottom applications
- 2/0 AWG lug, easily removable and can be installed in any location on the neutral bar
- Type BR AFCI breakers, compact design for easier wiring and improved wireway access, provides a clean gutter space
- Standard Tin-plated aluminum bus for excellent conductivity and corrosion-resistance
- Tangential center knockout - easier installation for conduit applications
- Commercial grade main breaker, 25 kAIC series rated main breaker for superior protection
- Neutral bus, easily removable for sub-panel applications
- Bonding Z-strap, provides easy field conversion for service entrance applications
- Steel backpan provides solid and reliable breaker mounting, single piece design for stability and durability
- 6 to 2/0 AWG copper/aluminum wire size
Included
Cover and Combination Trim
Warranty
10 years
