Cutler-Hammer Series CH4L125RP

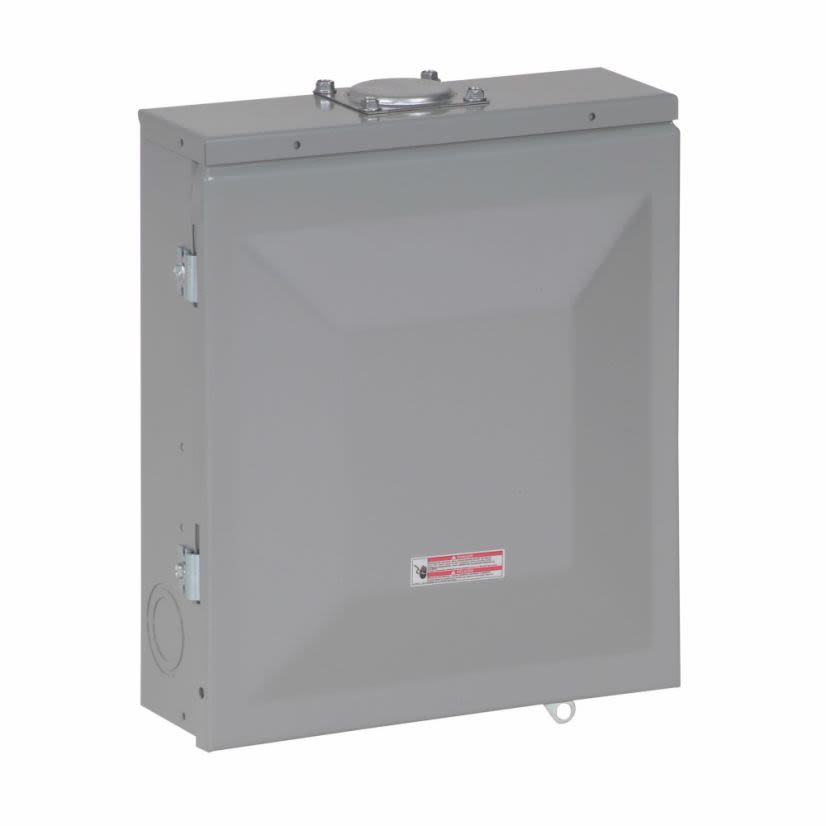

EATON CH4L125RP 1-Phase Standard Main Lug Loadcenter, 120/208/240 V AC, 125 A, 8 Poles, 10 kA Interrupt
EATON CH4L125RP 1-Phase Standard Main Lug Loadcenter, 120/208/240 V AC, 125 A, 8 Poles, 10 kA Interrupt

Cutler-Hammer Series CH4L125RP

EATON CH4L125RP 1-Phase Standard Main Lug Loadcenter, 120/208/240 V AC, 125 A, 8 Poles, 10 kA Interrupt
In Stock: 16more info
|

BrandCutler-Hammer Series

MFG #CH4L125RP

Werner Part #24424

UPC782114190517

In Stock: 16more info
|

BrandCutler-Hammer Series

MFG #CH4L125RP

Werner Part #24424

UPC782114190517

Product Description

EATON Main Lug Loadcenter, 1-Phase Standard, 120/208/240 V AC, 125 A, 8 Pole, 10 kA Interrupt, 4 Circuits, CH Breaker, 3-Wire Wiring Configuration, 4 Spaces, 14 to 1/0 AWG Wire, Surface Mount, NEMA 3R, NEMA 7R Enclosure Box, Metal Housing, 13 in L x 11 in W x 3.69 in H
Attributes
Actuator TypeHandle
Breaker TypeCH
Country of OriginUS
Dimensions13 in L x 11 in W x 3.69 in H
Enclosure Box SizeNEMA 7R
Enclosure TypeNEMA 3R
FinishGalvanized
Frequency Rating50/60 Hz
Horsepower15 hp
Housing MaterialMetal
Interrupt Rating10 kA
ManufacturerEaton
MaterialSteel
Mounting Type3-Point/Self-Leveling
Number of Circuits4
Number of Poles8
Number of Spaces4
Number of Wires3
Phase3 ph
Short Circuit Current Rating100 kA
Size of Wire#14 to 1/0 AWG
Temperature Rating60 to 75 deg C
Terminal TypeLine/Load Lug
Type1-Phase Standard
Type / StyleSTANDARD
Voltage120/208/240 VAC
Wiring Configuration3-Wire
