Cutler-Hammer Series CHP60B200X9

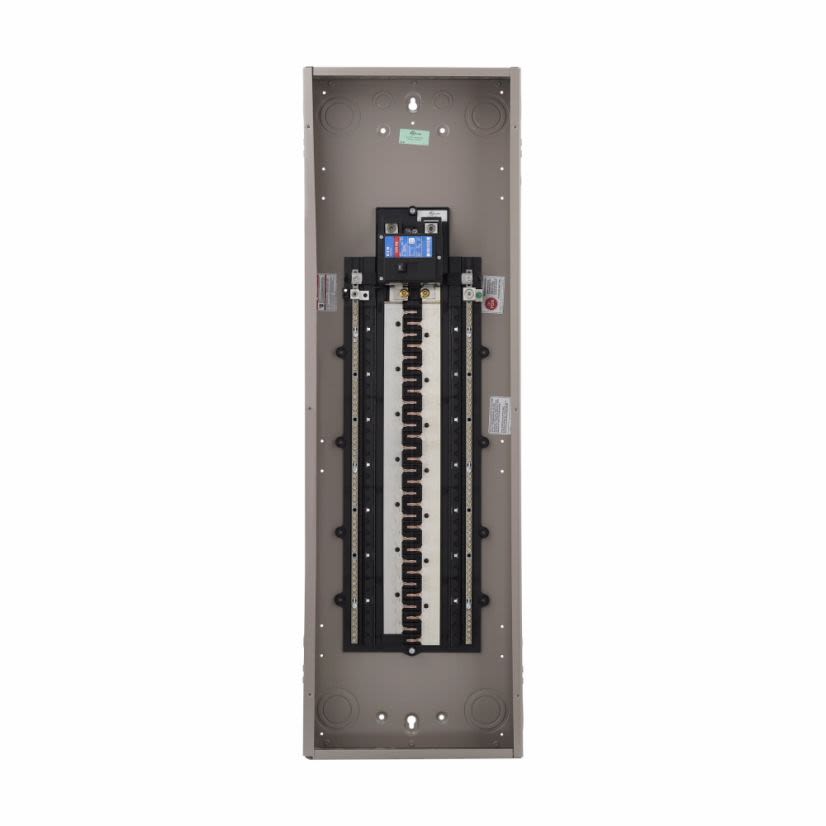

EATON CHP60B200X9 1-Phase Insulated/Bondable Split Main Breaker Load Center, 120/240 V AC, 200 A, 120 Poles, 25 kA Interrupt
Cutler-Hammer Series CHP60B200X9
EATON CHP60B200X9 1-Phase Insulated/Bondable Split Main Breaker Load Center, 120/240 V AC, 200 A, 120 Poles, 25 kA InterruptIn Stock: 1more info
|
BrandCutler-Hammer Series
MFG #CHP60B200X9
Werner Part #4225678
UPC786679189665
In Stock: 1more info
|
BrandCutler-Hammer Series
MFG #CHP60B200X9
Werner Part #4225678
UPC786679189665
Product Description
EATON Main Breaker Load Center, 1-Phase Insulated/Bondable Split, 120/240 V AC, 200 A, 120 Pole, 25 kA Interrupt, 60 Circuits, CH/CSR Breaker, Plug-On Neutral Breaker Mounting, 3 Wiring Configuration, 60 Spaces, 2 AWG to 300 kcmil Wire, Plug-On Mount, NEMA 1, X9 Enclosure Box, Sheet Steel Housing, 45 in L x 14.31 in W x 3.88 in H
Attributes
Documents
Applications
Features
Warranty
Specifications
Attributes
Breaker TypeCH/CSR
Country of OriginUS
Dimensions45 in L x 14.31 in W x 3.88 in H
Enclosure Box SizeX9
Enclosure TypeNEMA 1
Housing MaterialSheet Steel
Interrupt Rating25 kA
ManufacturerEaton
Number of Circuits60
Number of Poles120
Number of Spaces60
Suitable For Use With2/3/4-Pole Type BR Circuit Breaker in S3100 and 3100R Loadcenter
Type1-Phase Insulated/Bondable Split
Wiring Configuration3
Applications
Electrical Assemblies, Panels, EOEMs, Residential Load Centers, Meter Breaker Panels, Light Commercial Distribution Panels, Pool Panels, Residential Transfer Switch Panels, Various OEM and Indoor Applications
Features
- Extra 1-1/2 in knockout, larger knockout provides easier installation and time savings for renovation installations
- Straight-in wiring saves labor and material
- One panel for either top or bottom applications
- 2/0 AWG lug - easily removable and can be installed in any location on the neutral bar
- One-piece silver flash plated copper bus provides superior conductivity throughout the entire product line
- Drywall marking on enclosure, indicates proper mounting depth for flush applications
- Steel backpan provides solid and reliable breaker mounting, single piece design for stability and durability
- Tangential center knockout - easier installation for conduit applications
- Neutral bus, easily removable for sub-panel applications
- Bonding Z-strap provides easy field conversion for service entrance applications
- Twin neutral bars, minimum 150% neutral capacity
- Without covers
- 2 AWG to 300 kcmil copper/aluminum wire
Warranty
Limited Lifetime
