Cutler-Hammer Series CHP42B200R

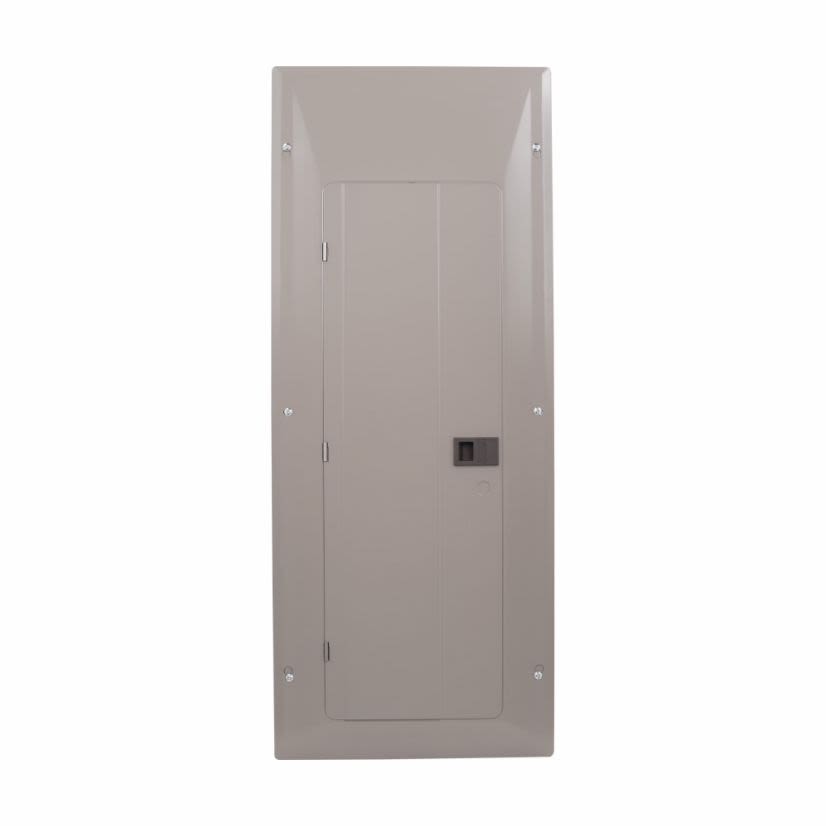

EATON CHP42B200R 1-Phase Rainproof Main Breaker Load Center, 120/240 V AC, 200 A, 84 Poles, 25 kA Interrupt
Cutler-Hammer Series CHP42B200R
EATON CHP42B200R 1-Phase Rainproof Main Breaker Load Center, 120/240 V AC, 200 A, 84 Poles, 25 kA InterruptIn Stock: 1more info
|
In Stock: 1more info
|
Product Description
EATON Main Breaker Load Center, 1-Phase Rainproof, 120/240 V AC, 200 A, 84 Pole, 25 kA Interrupt, 42 Circuits, CH/CSR Breaker, 3 Wiring Configuration, 42 Spaces, 2 AWG to 300 kcmil Wire, Plug-On Mount, NEMA 3R, X7 Enclosure Box, Sheet Steel Housing, 37 in L x 14.31 in W x 5.19 in H
Attributes
Documents
Applications
Features
Included
Warranty
Attributes
Breaker TypeCH/CSR
Connection TypeLine Side Lug
Country of OriginUS
Dimensions37 in L x 14.31 in W x 5.19 in H
Enclosure Box SizeX7
Enclosure TypeNEMA 3R
Housing MaterialSheet Steel
Interrupt Rating25 kA
ManufacturerEaton
Number of Circuits42
Number of Poles84
Number of Spaces42
Phase1 ph
Short Circuit Current Rating100 kA
Size of Wire(4) 1/0 AWG to 300 kcmil, (2) 1/0 AWG to 750 kcmil
Type1-Phase Rainproof
Wiring Configuration3
Applications
Residential Buildings, Facilities, Residential Load Centers, Meter Breaker Panels, Light Commercial Distribution Panels, Pool Panels, Residential Transfer Switch Panels, Various OEM and Outdoor Applications
Features
- Extra 1-1/2 in knockout, larger knockout provides easier installation and time savings for renovation installations
- Straight-in wiring saves labor and material
- One panel for either top or bottom applications
- 2/0 AWG lug - easily removable and can be installed in any location on the neutral bar
- One-piece silver flash plated copper bus provides superior conductivity throughout the entire product line
- Drywall marking on enclosure, indicates proper mounting depth for flush applications
- Steel backpan provides solid and reliable breaker mounting, single piece design for stability and durability
- Tangential center knockout - easier installation for conduit applications
- Neutral bus, easily removable for sub-panel applications
- Bonding Z-strap provides easy field conversion for service entrance applications
- Twin neutral bars, minimum 150% neutral capacity
- 2 AWG to 300 kcmil copper/aluminum wire
Included
Cover and Hub Closure Plate
Warranty
Limited Lifetime
