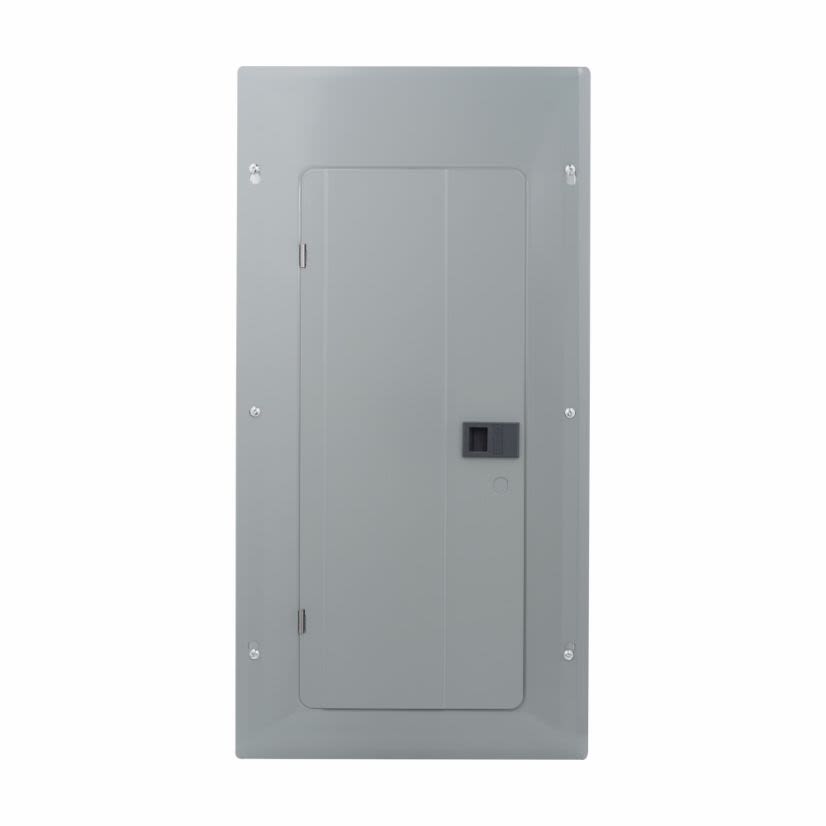

Cutler-Hammer Series BRP30HC100
EATON BRP30HC100 1-Phase Load Center, 120/240 V AC, 100 A, 1 Poles, 22 kA Interrupt
Cutler-Hammer Series BRP30HC100
EATON BRP30HC100 1-Phase Load Center, 120/240 V AC, 100 A, 1 Poles, 22 kA InterruptIn Stock: 9more info
|
BrandCutler-Hammer Series
MFG #BRP30HC100
Werner Part #4239929
UPC786689052867
In Stock: 9more info
|
BrandCutler-Hammer Series
MFG #BRP30HC100
Werner Part #4239929
UPC786689052867
Product Description
EATON Load Center, 1-Phase, 120/240 V AC, 100 A, 1 Pole, 22 kA Interrupt, 60 Circuits, BR Breaker, Plug-On Neutral Breaker Mounting, 30 Spaces, NEMA 1, X5 Enclosure Box, Sheet Steel Housing, 29 in L x 14.31 in W x 3.88 in H
Attributes
Documents
Features
Included
Warranty
Attributes
Breaker TypeBR
Country of OriginUS
Dimensions29 in L x 14.31 in W x 3.88 in H
Enclosure Box SizeX5
Enclosure TypeNEMA 1
Housing MaterialSheet Steel
Interrupt Rating22 kA
ManufacturerEaton
Number of Circuits60
Number of Poles1
Number of Spaces30
Size of Wire14 to 4 AWG
Type1-Phase
Documents
Features
- The BR plug-on neutral portfolio from EATON offers a unique design that offers improved safety, ease of installation and leaves the end result with a clean and professional look and feel
- Unique self-leveling tabs to allow for quick drywall offset
- The short-body BR electronic circuit breakers are optimized to save gutter space and installation time with an easier, more succinct installation process
- Added key hole hanging feature on cover for ease of installation
- Common drive types on screw connections for added simplicity and convenience
- In board neutral to increase the gutter space for easier installation of conductors
- Backed-out neutral screws to allow for a quick connection of ground and neutral conductors
- Upgraded to embossed circuit numbers for a more clean and professional look
- Copper bus
- NEMA 1 indoor with combination trim
Included
Cover
Warranty
10 years
