Cutler-Hammer Series CH30SPAST

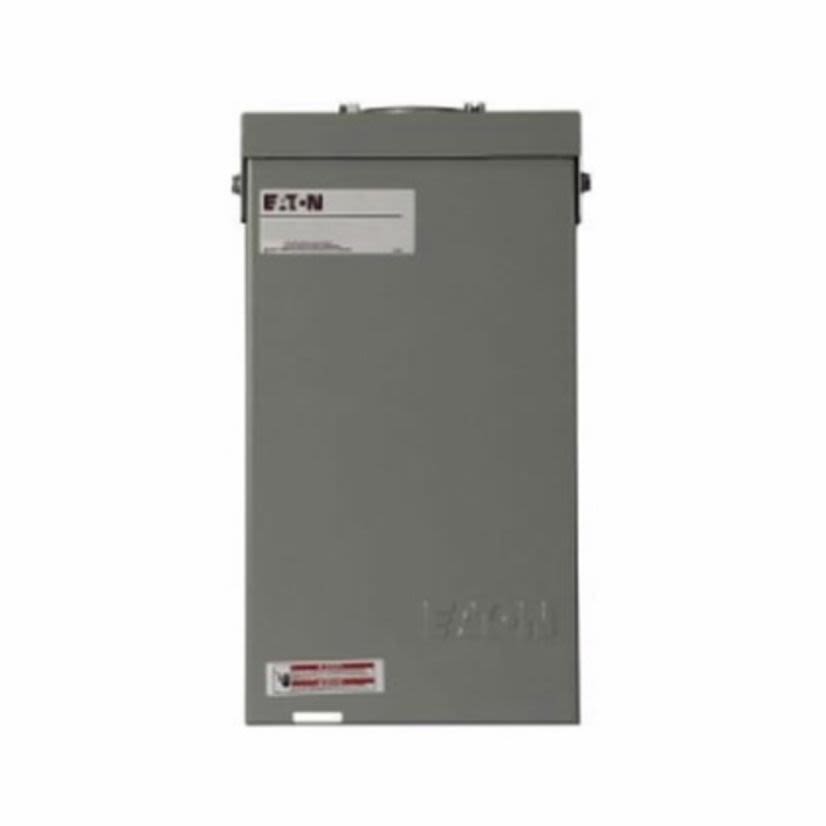

EATON CH30SPAST Quick-Pro 1-Phase Spa Panel, 120/240 VAC, 30 A, 2 Poles
Cutler-Hammer Series CH30SPAST
EATON CH30SPAST Quick-Pro 1-Phase Spa Panel, 120/240 VAC, 30 A, 2 PolesNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
EATON Spa Panel, 1-Phase, Series: Quick-Pro, 120/240 VAC, 30 A, 2 Pole, 30 Circuits, CH Breaker, 3-Wire Wiring Configuration, 30 Spaces, 14 to 1/0 AWG Wire, NEMA 3R Enclosure, NEMA 5R Enclosure Box, Galvanized Steel Housing Material, 9.5 in L x 4.5 in W x 3.13 in H Dimensions
Attributes
Documents
Applications
Features
Included
Warranty
Attributes
Breaker TypeCH
Connection TypeLine/Load
Country of OriginUS
Dimensions9.5 in L x 4.5 in W x 3.13 in H
Enclosure Box SizeNEMA 5R
Enclosure TypeNEMA 3R
FrameG
Frequency Rating50/60 Hz
Housing MaterialGalvanized Steel
Interrupt Rating14 kAIC at 277 VAC
ManufacturerEaton
Mounting TypeBolt-On
Number of Circuits30
Number of Poles2
Number of Spaces30
Number of Wires3
Phase1 ph
SeriesQuick-Pro
Size of Wire10 to 1/0 AWG
Temperature Rating40 deg C
Trip TypeFixed Thermal/Fixed Magnetic
Type1-Phase
Type / StyleCh spa panel-quick pro
Wiring Configuration3-Wire
Applications
Residential Load centers and Meter Breaker Panels, Light Commercial Distribution Panels, Pool Panels, Residential Transfer Switch Panels and Various OEMs Applications
Features
- Two extra circuits for additional loads
- Tough powder coated galvanized steel enclosure
- Factory installed 2-pole ground fault circuit interrupter (GFCI)
- 14 to 1/10 AWG copper/aluminum wire size
- GF self-test feature
Included
CH230GFT Circuit Breaker and (2) Extra Circuit
Warranty
Limited Lifetime
