Cutler-Hammer Series FAZ-C20/1-NA-SP

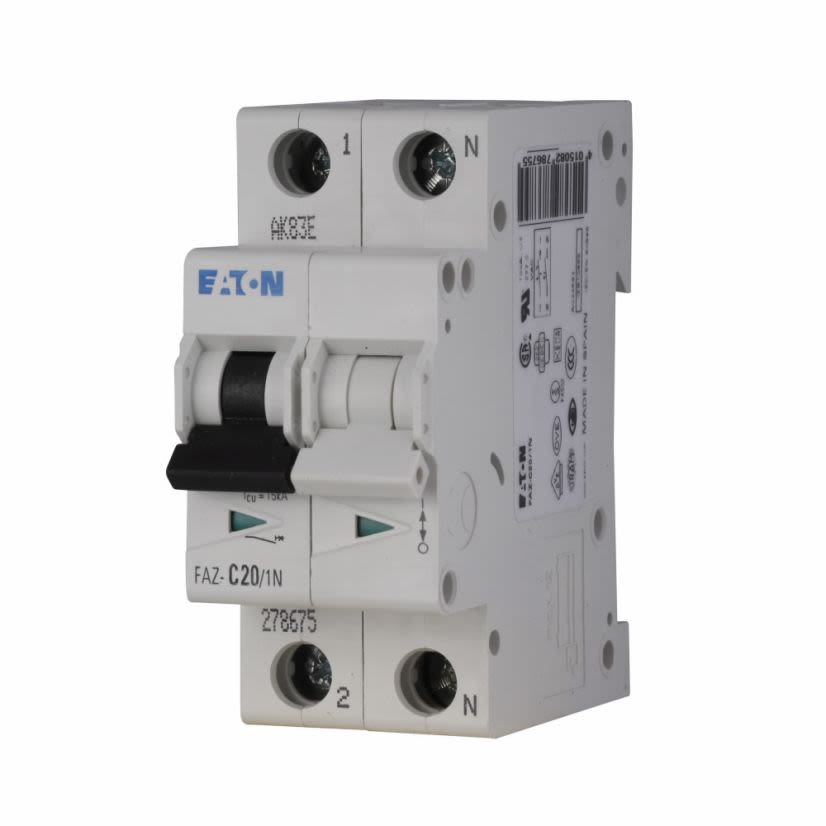

EATON FAZ-C20/1-NA-SP Current Limiting Supplementary Protector, 277/480 V AC, 20 A, 10 to 14 kA Interrupt, 1 Poles, Thermal Magnetic Trip
Cutler-Hammer Series FAZ-C20/1-NA-SP
EATON FAZ-C20/1-NA-SP Current Limiting Supplementary Protector, 277/480 V AC, 20 A, 10 to 14 kA Interrupt, 1 Poles, Thermal Magnetic TripIn Stock: 8more info
|
BrandCutler-Hammer Series
MFG #FAZ-C20/1-NA-SP
Werner Part #3981036
In Stock: 8more info
|
BrandCutler-Hammer Series
MFG #FAZ-C20/1-NA-SP
Werner Part #3981036
Product Description
EATON Supplementary Protector, Current Limiting, Series: FAZ, 277/480 V AC, 20 A, 50/60 Hz Frequency, 10 to 14 kA Interrupt, Thermal Magnetic Trip, 1 Pole, Lever/Toggle Actuator, 18 to 6 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -40 to 75 deg C, 0.7 x 2.75 x 4.13 in Dimensions, Nylon
Attributes
Documents
Applications
Features
Attributes
Actuator TypePivot/Toggle Handle
Connection TypeLoad Lug
Country of OriginES
Dimensions0.7 x 2.75 x 4.13 in
Enclosure TypeIP20
FrameQ-Line
Frequency Rating50/60 Hz
Interrupt Rating10 to 14 kA
ManufacturerEaton
MaterialNylon
Mounting TypeBolted-On
Number of Poles1
Phase3
SeriesFAZ
Size of Wire(2) 1 AWG to 300 kcmil
Temperature Rating-40 to 75 deg C
Trip TypeThermal Magnetic
TypeCurrent Limiting
Type / StyleType FAZ-NA Current Limiting
Voltage480/277 VAC
Applications
Convenience Receptacle Circuits, Motor Control Circuits, Load Circuits Leaving the Equipment, HACR Equipment, PLC I/O Points, Computers, Power Supplies, Control Instrumentation, Relays, UPS, Power Conditioners, Conventional Energy, Renewable Energy and Alternative Energy Generation, Datacenters, IT Space - CI, Hyper Converged, Marine Vessels and Equipment and Industrial Applications
Features
- Current limiting design provides fast short-circuit interruption that reduces the let-through energy, which can damage the circuit
- Trip-free design breaker can not be defeated by holding the handle in the On position
- A color coded red/green indicator provides immediate visual indication of device status (green for Off, red for On) and isolation function
- Power to the circuit breakers can be fed from the line or load side
- Captive screws cannot be lost
- To save installation time, bus connectors and feeder terminal facilitate mounting and wiring of multiple miniature circuit breaker arrays in control panel assemblies
- SWD (switching duty) suitable for switching fluorescent lighting loads
- C curve devices are suitable for applications where medium levels of inrush current are expected
- C curve devices provide a medium magnetic trip point
