Cutler-Hammer Series CHF220

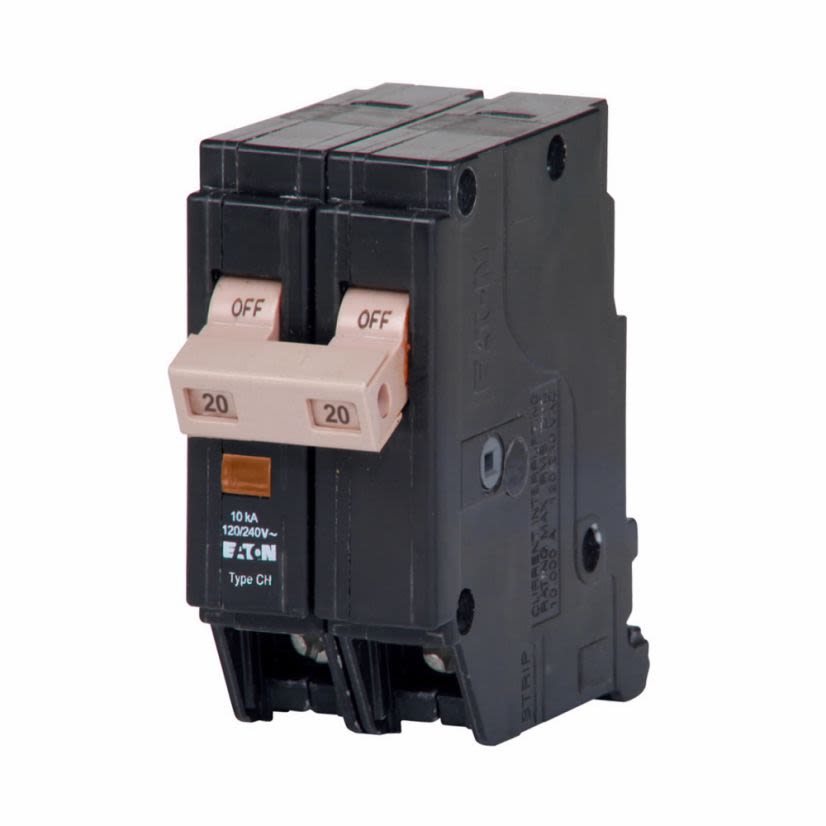

EATON CHF220 Type CHF Standard Circuit Breaker With Mechanical Trip Flag, 120/240 V AC, 20 A, 10 kA Interrupt, 2 Poles
Cutler-Hammer Series CHF220
EATON CHF220 Type CHF Standard Circuit Breaker With Mechanical Trip Flag, 120/240 V AC, 20 A, 10 kA Interrupt, 2 PolesIn Stock: 94more info
|
BrandCutler-Hammer Series
MFG #CHF220
Werner Part #3906305
UPC786685361888
In Stock: 94more info
|
BrandCutler-Hammer Series
MFG #CHF220
Werner Part #3906305
UPC786685361888
Product Description
EATON Circuit Breaker, Type CHF Standard, 120/240 V AC, 20 A, 10 kA Interrupt, 2 Pole, 1 ph, Toggle Handle Actuator, Box Lug, (1) 14 to 8 AWG, (2) 14 to 10 AWG Copper/Aluminum Wire, Plug-On Mount, 60 to 75 deg C, 3 in L x 3/4 in W x 3 in H
Attributes
Documents
Applications
Warranty
Features
Attributes
Actuator TypePivot/Toggle Handle
Connection TypeBox Lug
Country of OriginMX
Dimensions3 in L x 3/4 in W x 3 in H
Enclosure TypeNEMA 1/3R/4/4X/12
FrameSF250
Frequency Rating50/60 Hz
Interrupt Rating10 kA
ManufacturerEaton
Mounting TypePanel
Number of Poles2
Phase1
Size of Wire8 AWG to 350 kcmil
Temperature Rating60 to 75 deg C
Trip TypeElectronic LSI/Interchangeable
TypeType CHF Standard
Type / StyleType CHF Standard
Voltage120/240 VAC
Documents
Applications
Residential Type CH Loadcenter and Meter Breaker Panels, Light Commercial Distribution Panels, Pool Panels, Residential Transfer Switch Panels and Various OEM Applications
Warranty
Limited Lifetime
Features
- (1) 14 to 8 AWG, (2) 14 to 10 AWG copper aluminum at 60 to 75 deg C wire range
- Easy to install
- Easy to reset
- Best in class performance
- Circuit breaker is clearly marked identifying amperage, ratings and the brand
- Trip flag visibly indicates breaker status
- 3/4 in per pole
