Cutler-Hammer Series BAB2040

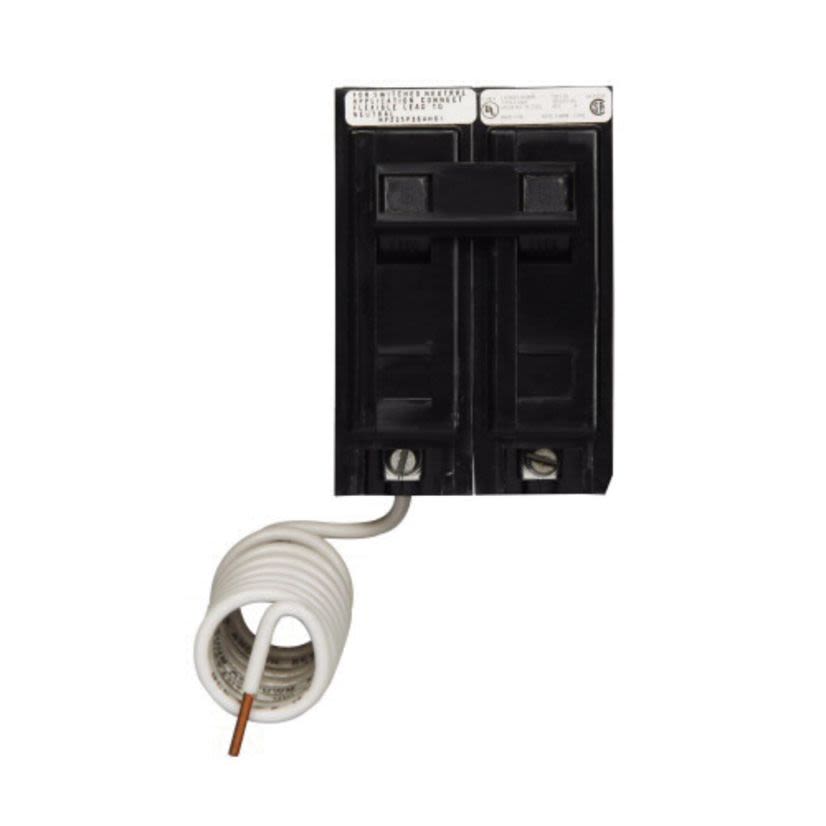

EATON QuickLag BAB2040 Type BAB Miniature Circuit Breaker, 120/240 V AC, 40 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Cutler-Hammer Series BAB2040
EATON QuickLag BAB2040 Type BAB Miniature Circuit Breaker, 120/240 V AC, 40 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic TripIn Stock: 11more info
|
In Stock: 11more info
|
Product Description
EATON QuickLag Miniature Circuit Breaker, Type BAB, 120/240 V AC, 40 A, 50/60 Hz Frequency, 10 kA Interrupt, Thermal Magnetic Trip, 2 Pole, 1 ph, Steel Box Lug Connection, 14 to 4 AWG Wire, Bolted-On Mounting, 40 deg C, 3.1 in L x 2 in W x 2.9 in H Dimensions
Attributes
Documents
Applications
Features
Attributes
Actuator TypeHandle
Connection TypeSteel Box Lug
Country of OriginDO
Dimensions3.1 in L x 2 in W x 2.9 in H
Enclosure TypeNEMA 1
Frequency Rating50/60 Hz
Horsepower15 hp Standard Fuse/50 hp Time Delay
Interrupt Rating10 kA
ManufacturerEaton
MaterialSteel
Mounting TypeSurface
Number of Poles2
Number of Wires3
Phase1
SeriesTGN
Short Circuit Current Rating100 kA
Size of Wire14 to 4 AWG
Temperature Rating40 deg C
Trip TypeThermal Magnetic
TypeType BAB
Type / StyleType BAB
Voltage120/240 VAC
Applications
Datacenters, IT Space, CI and Hyper Converged, Generation - Conventional Energy, Renewable Energy, Alternative Energy, Marine Vessels and Equipment, Residential Buildings and Facilities, Protection of Panelboards and Industrial Applications
Features
- Flexible power feed connection (wire size and position) offers product uniformity as well as ease of installation
- Field mountable accessories make installation and on-site custom configuration easy
- Compact designs available to minimize panel size
