Heyco M3200GBH

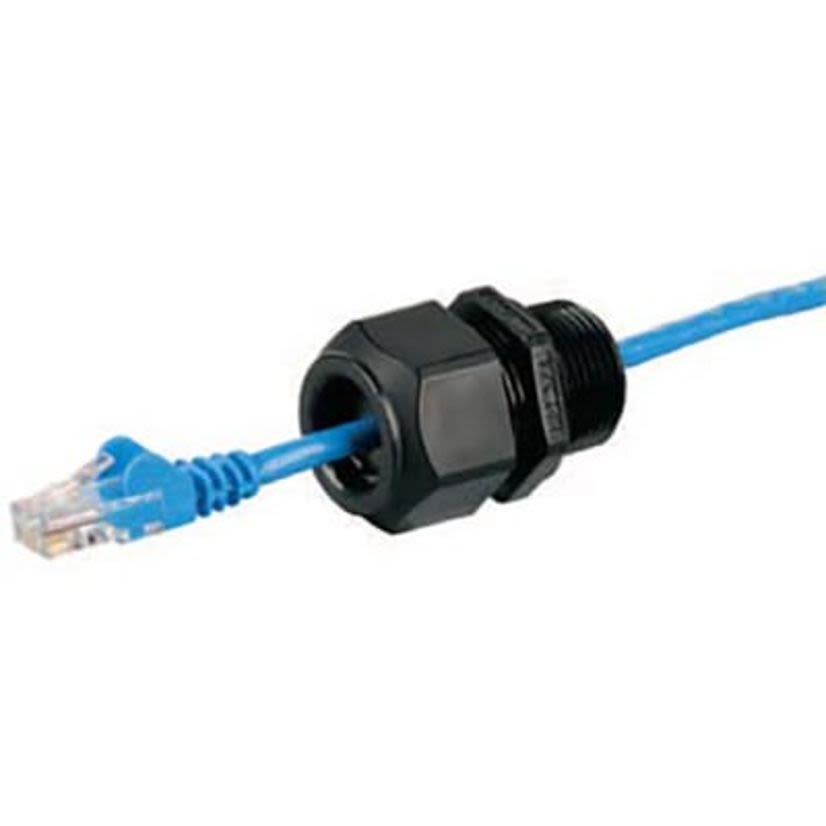

Heyco M3200GBH Split Gland Liquid Tight Cord Grip, 0.210 to 0.334 in Cable Openings, Nylon 6/6
Heyco M3200GBH
Heyco M3200GBH Split Gland Liquid Tight Cord Grip, 0.210 to 0.334 in Cable Openings, Nylon 6/6Out of Stockmore info
|
BrandHeyco
MFG #M3200GBH
Werner Part #4293952
Out of Stockmore info
|
BrandHeyco
MFG #M3200GBH
Werner Part #4293952
Product Description
Heyco, M3200GBH, Liquid Tight Cord Grip, Split Gland, Cable Openings: 0.210 to 0.334 in, NPT Connection, Nylon 6/6, Black, -40 to 239 deg F, 0.875 in Dia x 1.7 in L Dimensions
Attributes
Documents
Features
Attributes
Cable Openings0.210 to 0.334 in
ColorBlack
Connection TypeNPT
Dimensions0.875 in Dia x 1.7 in L
ManufacturerHeyco
MaterialNylon 6/6
Temperature Rating-40 to 239 deg F
TypeSplit Gland
Features
- Split Glands are designed for application to the cable after the cable has passed through the LTCG; e.g., RJ45 cable with Cat5e termination
- Simply pass the cable termination through the LTCG body, apply Split Gland to the cable, and insert the gland/cable assembly into the LTCG fingers. Then tighten the Sealing Nut to achieve a liquid tight seal
- Approved for NEMA 4, 4X, 6 and 6P applications
- For other cable/termination configuration sizes, and Pg and Metric hub threads, please consult Heyco
- Integral Sealing Ring ensures a superior seal at the clearance or threaded mounting hole location, every time
