B-Line Series 26A09-24-120

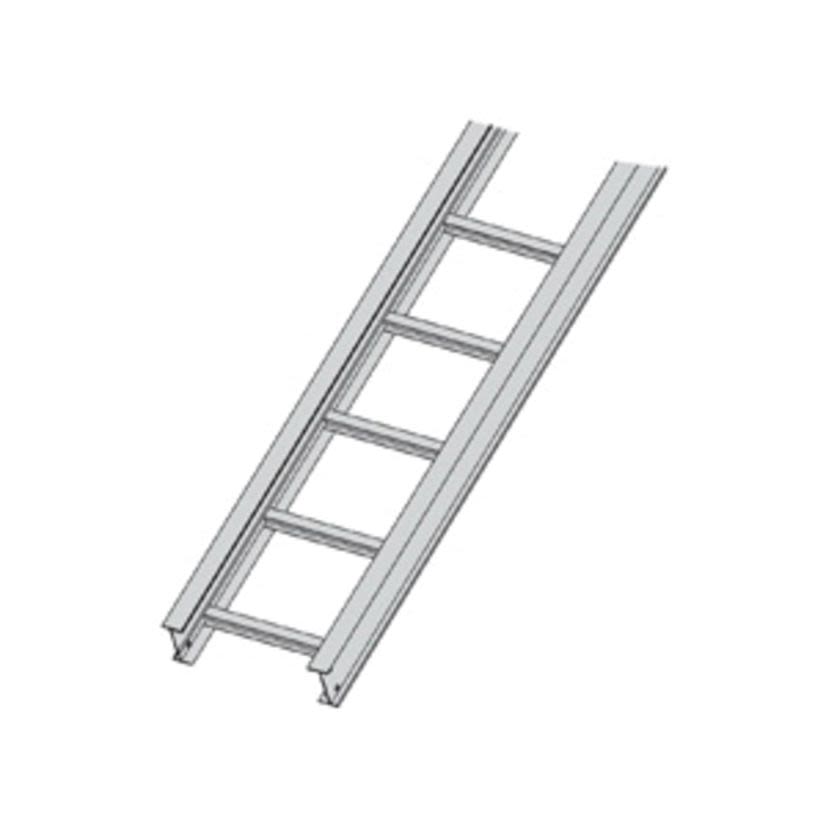

B-Line 26A09-24-120 26A Series II Straight Section Cable Tray, 5 in D Loading, 204 ft-lb, 10 ft L x 24 in W, 6063-T6 Aluminum
B-Line Series 26A09-24-120
B-Line 26A09-24-120 26A Series II Straight Section Cable Tray, 5 in D Loading, 204 ft-lb, 10 ft L x 24 in W, 6063-T6 AluminumNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
B-Line Cable Tray, Straight Section, Series: 26A Series II, 5 in Loading Depth, Ladder Bottom, 204 ft-lb Capacity, 24 in Width, 10 ft Length, 9 in Rung Spacing, 6 in Side Rail Height, 6.12 in Overall Height, 6063-T6 Aluminum
Attributes
Included
Features
Specifications
Attributes
Capacity204 ft-lb
Country of OriginUS
HeightOverall: 6.12 in
Length10 ft
Loading Depth5 in
ManufacturerEaton
Material6063-T6 Aluminum
Overall Height6.12 in
Rung Spacing9 in
Series26A Series II
TypeStraight Section
Type / StyleStraight Section
Width24 in
Included
9A-1006 Wedge Lock Splice Plate Pair with 3/8 in Zinc Plated Hardware
Features
- Cable trays will support without collapse a 200 lb concentrated load over and above published loads
- Safety factor is 1.5
- 1 in cable bearing surface
- Copper free marine grade
- 204/142/104/80/63/51 ft-lb load
- 10/12/14/16/18/20 ft span
- 0.0028/0.006/0.011/0.019/0.03/ 0.045 deflection multiplier
- Design factors for two rails is 1.41 sq-in
Specifications
Standards/Approvals: UL Listed, CSA C22.2 NO 126, NEMA VE 1
