Belden 8471-060500

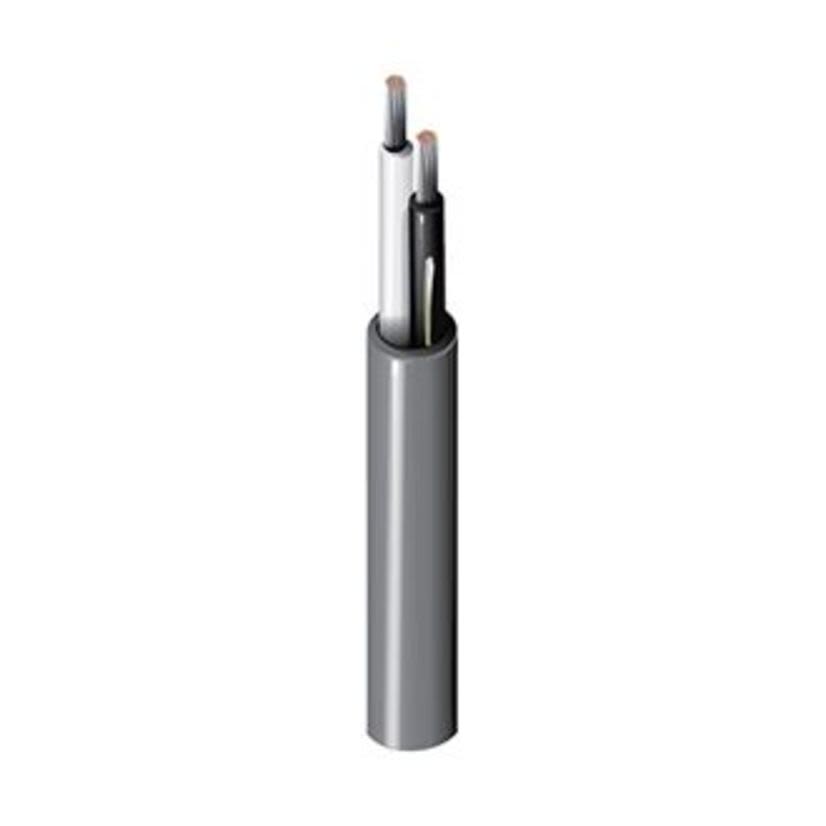

Belden 8471-060500 Speaker Cable, 500 ft L, 16 AWG Conductor, PVC Jacket
Belden 8471-060500
Belden 8471-060500 Speaker Cable, 500 ft L, 16 AWG Conductor, PVC JacketNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Belden Speaker Cable, Series: 8471, 500 ft Length, 16 AWG Conductor, PVC Jacket, Unshielded Shield, 14.731 Ohm Impedance, 2 Conductors, Chrome
Attributes
Documents
Features
Specifications
Attributes
ColorChrome
Conductor size16 AWG
Impedance14.731 Ohm
Jacket MaterialPVC
Length500 ft
ManufacturerBelden
Number of Conductors2
Series8471
Shield TypeUnshielded
Features
- High conductivity
- PVC insulation material
- 0.5842 mm insulation wall thickness
- 0.8128 mm jacket wall thickness
- 50.8 mm lay length
- -20 to 80 deg C operating temperature rating
- 271.34 N maximum recommended pulling tension
- 69.85 mm minimum bend radius/minor axis
- 0.623 uH/m nominal inductance
- 108.273 pF/m nominal capacitance conductor to conductor
- 300 VAC RMS operating voltage
- 6.1 A per conductor at 25 deg C ambient
- 6.96 mm overall nominal diameter
- 53.575 kg/km bulk cable weight
Specifications
Shield Type: Unshielded
