T&B® HTZ2

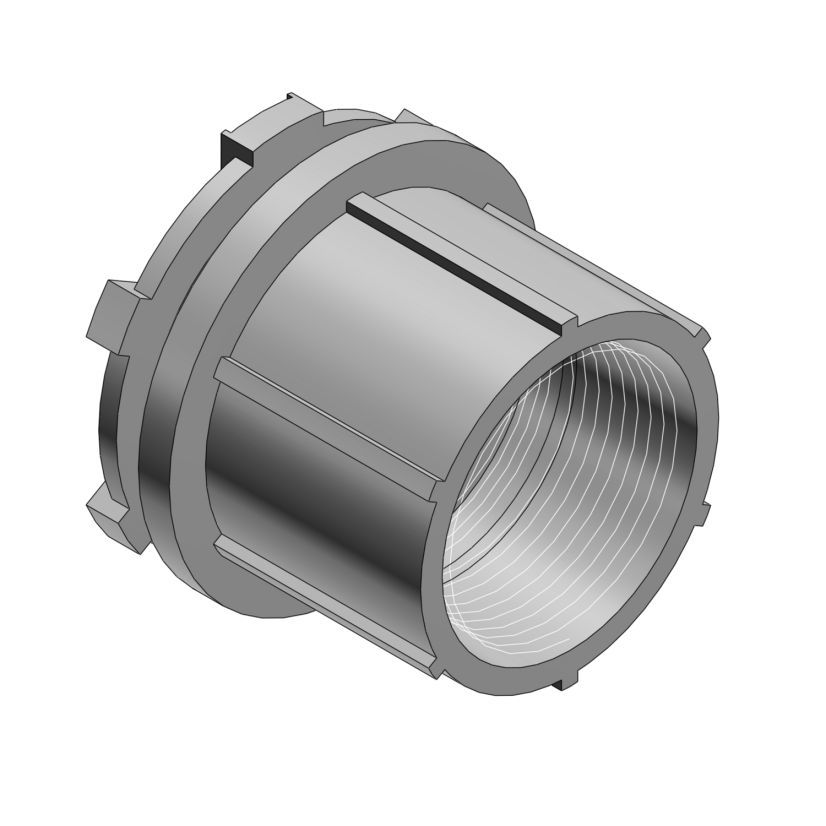

T&B CHASE HTZ2 Conduit Hub With Insulated Throat, 3/4 in, For Use With Threaded Rigid/IMC Conduits, Die Cast Zinc, Aluminum Lacquered
T&B® HTZ2
T&B CHASE HTZ2 Conduit Hub With Insulated Throat, 3/4 in, For Use With Threaded Rigid/IMC Conduits, Die Cast Zinc, Aluminum LacqueredNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
T&B CHASE Conduit Hub, Series: HTZ, 3/4 in, For Use With: Threaded Rigid/IMC Conduits, Die Cast Zinc, Aluminum Lacquered, 1-21/32 in Dia
Attributes
Documents
Applications
Features
Attributes
Country of OriginIN
Dimensions1-21/32 in Dia
FinishAluminum Lacquered
ManufacturerABB
MaterialDie Cast Zinc
Size3/4 in
Suitable For Use WithThreaded Rigid/IMC Conduits
Type / StyleChase Conduit Hubs
Documents
Applications
For raintight connections between junction boxes or between a junction box and conduit system while maintaining ground continuity
Features
- CHASE design provides maximum space for wiring in the box, locking nipple sits flush in the enclosure
- Locking nipple should be knurled for positive rounding and be special flush design for extra wiring room
- Plastic insulated throat, precision cast and machined surfaces permit safer wire pulling
- Captive O-ring fits snugly in groove preventing loss and fumbling with parts
- Knurled inner face of locking nipple provides 360 deg of locking and bites through box wall to ensure grounding
- Locking nipple has tightening lugs on two planes for easier assembly in hard to reach field conditions
- Grounding hubs have a ground screw located within the enclosure providing a Tamper proof ground for device
- Locking nipple design permits replacement of the box without disassembling the installation
- Buna-N O-ring
- Plastic insulating sleeves
- Suitable for use where the system is normally hosed down (NEMA 4) for cleaning
- Suitable for use in wet locations
- 1/2-14 NPT thread
- 1-3/32 in mounting hole
- 1/4 in W panel
