T&B® T28

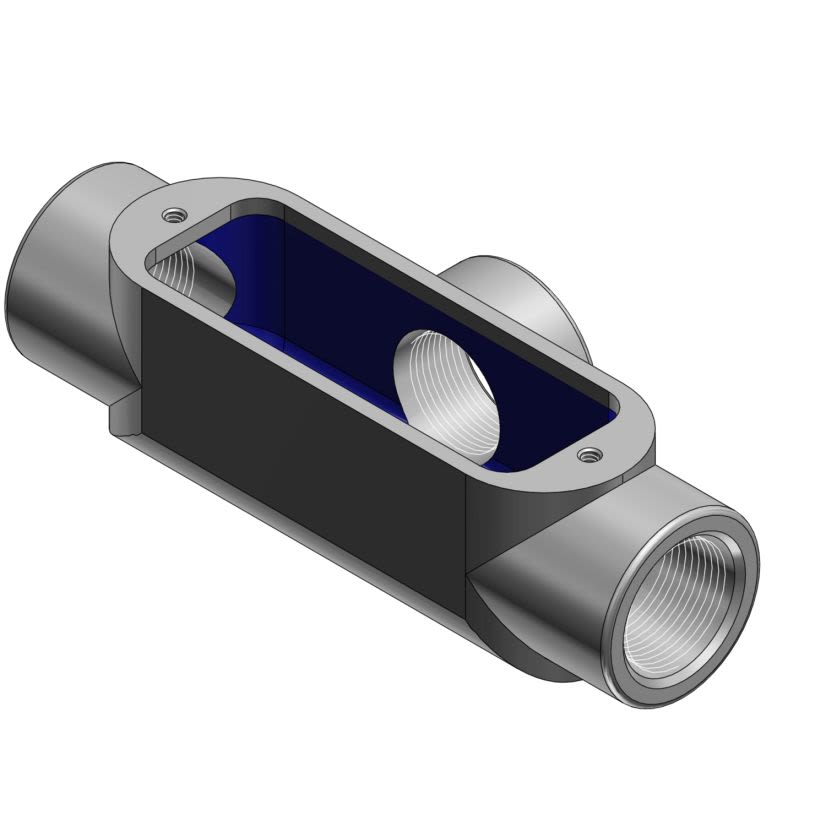

T&B BlueKote T28 Type T Conduit Body, 3/4 in Hub, Form 8 Form, 9 cu-in Capacity, Iron, Epoxy Powder Coated/Zinc Plated
T&B® T28
T&B BlueKote T28 Type T Conduit Body, 3/4 in Hub, Form 8 Form, 9 cu-in Capacity, Iron, Epoxy Powder Coated/Zinc PlatedNon-stock product. Available to order - lead time may vary.
BrandT&B®
MFG #T28
Werner Part #3760169
UPC786210166100
Non-stock product. Available to order - lead time may vary.
BrandT&B®
MFG #T28
Werner Part #3760169
UPC786210166100
Product Description
T&B BlueKote Conduit Body, Type T, 3/4 in Hub, 3 Hubs, 9 cu-in Capacity, Form 8, Tapered NPT, Iron, Epoxy Powder Coated/Zinc Plated, Gray, 6.42 in L x 4.3 in W x 2.39 in H
Attributes
Documents
Applications
Features
Attributes
Capacity9 cu-in
ColorGray
Connection TypeTapered NPT
Country of OriginCN
Dimensions6.42 in L x 4.3 in W x 2.39 in H
FinishEpoxy Powder Coated/Zinc Plated
FormForm 8
Hub Size3/4 in
ManufacturerABB
MaterialIron
Number of Hubs3
TypeType T
Type / StyleType T
Documents
Applications
For rigid/IMC conduit, connect sections, act as pull outlets when conductors are being installed and provide easy access for splices in branch conductors
Features
- Bluekote Teflon based internal finish provides a slick, easy glide internal surface which significantly lowers the amount of force necessary to pull wires
- Eliminates rough internal surfaces that can cut into cable jacket, insulation and conductors during pulling and also reduces installation time and risk of installer strain
- Triple layer protection including two layers of epoxy coating which stops corrosion in its tracks
- Bodies are designed with a flat back, allowing more cubic inch capacity
- Conduit bodies make 90 deg bends in conduit runs, act as mounting outlets for wiring devices and lighting fixtures and to provide access to conductors for maintenance and future system changes
