T&B® LL27CG-TB

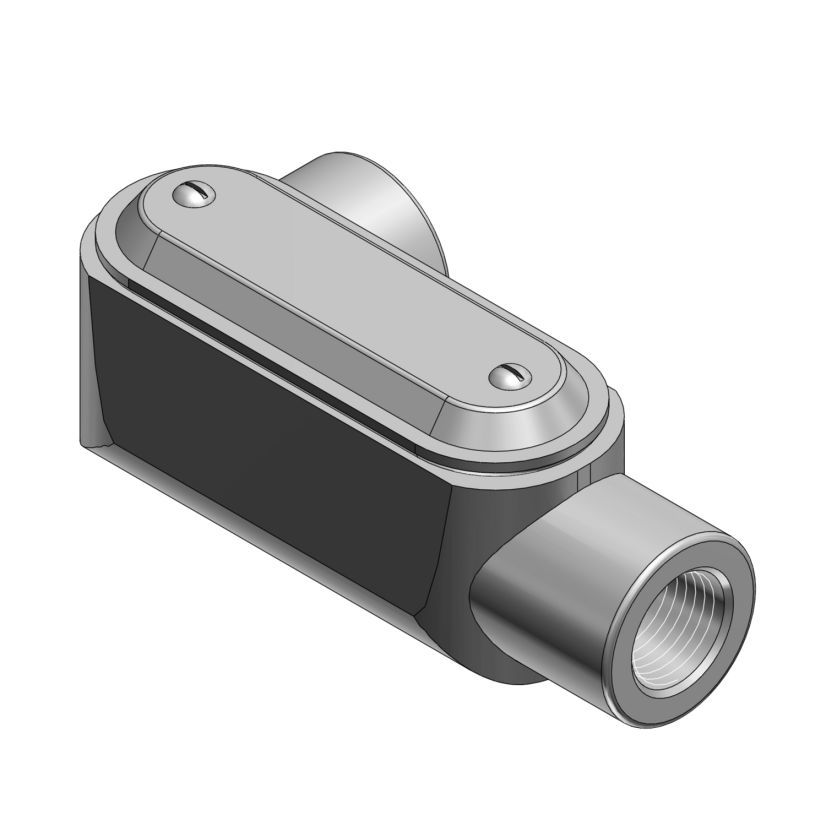

T&B BlueKote LL27CG-TB Type LL Pre-Assembled Conduit Body With Cover, Gasket, 3/4 in Hub, Form 7 Form, 6.6 cu-in Capacity, Iron, Epoxy Powder Coated/Zinc Plated
T&B® LL27CG-TB
T&B BlueKote LL27CG-TB Type LL Pre-Assembled Conduit Body With Cover, Gasket, 3/4 in Hub, Form 7 Form, 6.6 cu-in Capacity, Iron, Epoxy Powder Coated/Zinc PlatedNon-stock product. Available to order - lead time may vary.
BrandT&B®
MFG #LL27CG-TB
Werner Part #3914264
UPC786210916866
Non-stock product. Available to order - lead time may vary.
BrandT&B®
MFG #LL27CG-TB
Werner Part #3914264
UPC786210916866
Product Description
T&B BlueKote Conduit Body, Type LL Pre-Assembled, 3/4 in Hub, 2 Hubs, 6.6 cu-in Capacity, Form 7, Tapered NPT, Iron, Epoxy Powder Coated/Zinc Plated, Gray, 5.25 in L x 1.6 in W x 1.65 in H
Attributes
Documents
Applications
Features
Attributes
Capacity6.6 cu-in
ColorGray
Connection TypeTapered NPT
Country of OriginCN
Dimensions5.25 in L x 1.6 in W x 1.65 in H
FinishEpoxy Powder Coated/Zinc Plated
FormForm 7
Hub Size3/4 in
ManufacturerABB
MaterialIron
Number of Hubs2
TypeType LL Pre-Assembled
Type / StyleType LL Pre-Assembled
Documents
Applications
For connect sections, act as pull outlets when conductors are being installed and provide easy access for splices in branch conductors
Features
- Bluekote teflon based internal finish provides a slick, easy glide internal surface which significantly lowers the amount of force necessary to pull wires
- Eliminates rough internal surfaces that can cut into cable jacket, insulation and conductors during pulling and also reduces installation time and risk of installer strain
- Triple layer protection including two layers of epoxy coating which stops corrosion in its tracks
- Bodies are designed with a flat back, allowing more cubic inch capacity
- T&B Form 7 bodies and covers are interchangeable with Crouse-Hinds and Appleton Form 7 bodies and covers
- Conduit bodies make 90 deg bends in conduit runs, act as mounting outlets for wiring devices and lighting fixtures and to provide access to conductors for maintenance and future system changes
- Left side access opening
- Stamped steel/zinc plating cover material and finish
- Connect conduit sections
- Act as pull outlets when conductors are being installed and provide easy access for splices in branch conductors
